SLA6870MZ

In Stock: 6,622

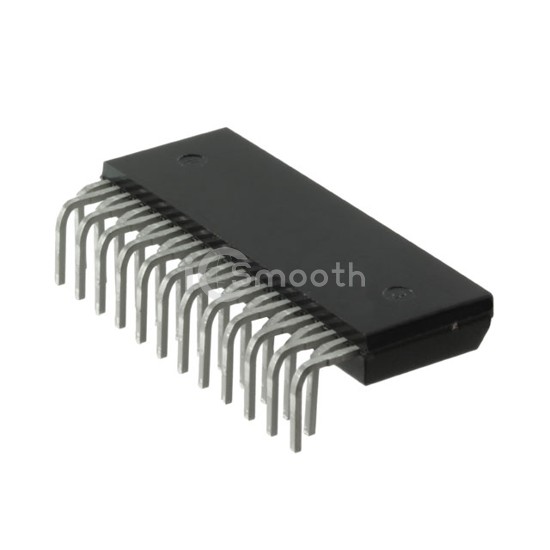

SLA6870MZ - Sanken - PMIC - Full, Half-Bridge Drivers
REF: SLA6870MZ Sanken
SLA6870MZ

Sanken

IC BRIDGE DRIVER PAR 24SIP

SLA6870MZ is a PMIC - Full, Half-Bridge Drivers manufactured by Sanken. IC BRIDGE DRIVER PAR 24SIP. Key specifications: mounting type Through Hole, operating temperature -20°C ~ 150°C (TJ), voltage - supply 13.5V ~ 16.5V, package / case 24-SSIP Formed Leads.

Datasheet Request a Quote

In Stock: 6,622

Specifications

17 parameters
Product StatusObsolete
Output ConfigurationHalf Bridge (3)
ApplicationsAC Motors
InterfaceLogic
Load TypeInductive
TechnologyPower MOSFET
Rds On (Typ)-
Current - Output / Channel3A
Current - Peak Output4.5A
Voltage - Supply13.5V ~ 16.5V
Voltage - Load400V (Max)
Operating Temperature-20°C ~ 150°C (TJ)
Features-
Fault ProtectionCurrent Limiting, Over Temperature, UVLO
Mounting TypeThrough Hole
Package / Case24-SSIP Formed Leads
Supplier Device Package24-ZIP LF2171
