SLA6868MZ LF2171

In Stock: 8,704

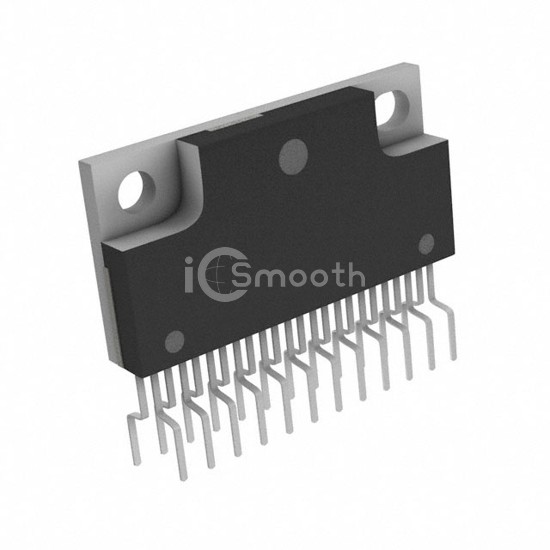

SLA6868MZ LF2171 - Sanken - PMIC - Full, Half-Bridge Drivers
REF: SLA6868MZ LF2171 Sanken
SLA6868MZ LF2171

Sanken

IC MOTOR DRIVER DC 3PH 24SIP

SLA6868MZ LF2171 is a PMIC - Full, Half-Bridge Drivers manufactured by Sanken. IC MOTOR DRIVER DC 3PH 24SIP. Key specifications: mounting type Through Hole, operating temperature -20°C ~ 150°C (TJ), voltage - supply 13.5V ~ 16.5V, package / case 24-SSIP Exposed Pad, Formed Leads.

Datasheet Request a Quote

In Stock: 8,704

Specifications

17 parameters
Product StatusNot For New Designs
Output ConfigurationHalf Bridge (3)
ApplicationsAC Motors
InterfaceLogic
Load TypeInductive
TechnologyPower MOSFET
Rds On (Typ)-
Current - Output / Channel2.5A
Current - Peak Output3.75A
Voltage - Supply13.5V ~ 16.5V
Voltage - Load400V (Max)
Operating Temperature-20°C ~ 150°C (TJ)
Features-
Fault ProtectionCurrent Limiting, Over Temperature, UVLO
Mounting TypeThrough Hole
Package / Case24-SSIP Exposed Pad, Formed Leads
Supplier Device Package24-SIP, LF2171
