SIM6822M

In Stock: 908
SIM6822M - Sanken - PMIC - Full, Half-Bridge Drivers
REF: SIM6822M Sanken
SIM6822M

Sanken

IC BRIDGE DRIVER PAR 40DIP

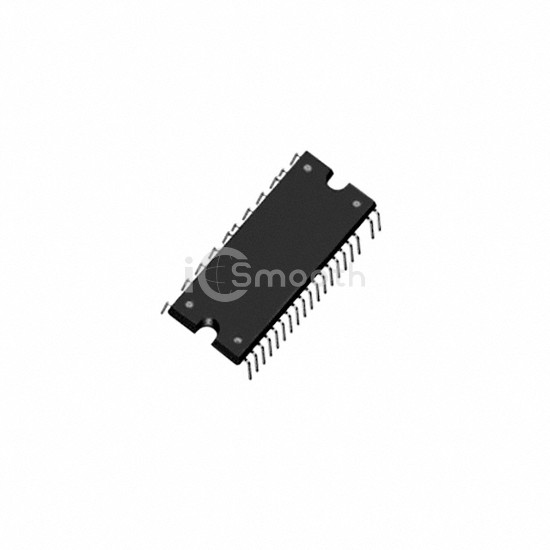

SIM6822M is a PMIC - Full, Half-Bridge Drivers manufactured by Sanken. IC BRIDGE DRIVER PAR 40DIP. Key specifications: mounting type Through Hole, operating temperature -20°C ~ 100°C (TA), voltage - supply 13.5V ~ 16.5V, package / case 40-DIP (0.657", 16.70mm), 29 Leads.

Datasheet Request a Quote

In Stock: 908

Specifications

17 parameters
Product StatusActive
Output ConfigurationHalf Bridge (3)
ApplicationsAC Motors
InterfaceLogic
Load TypeInductive
TechnologyIGBT
Rds On (Typ)-
Current - Output / Channel5A
Current - Peak Output7.5A
Voltage - Supply13.5V ~ 16.5V
Voltage - Load400V (Max)
Operating Temperature-20°C ~ 100°C (TA)
FeaturesBootstrap Circuit
Fault ProtectionCurrent Limiting, Over Temperature, UVLO
Mounting TypeThrough Hole
Package / Case40-DIP (0.657", 16.70mm), 29 Leads
Supplier Device Package40-DIP LF2971
