Name: RTQ2522BGQW(2)
Brand: Richtek USA Inc.
SKU: RTQ2522BGQW(2)
Price: 1.58 USD
Availability: InStock

REF: RTQ2522BGQW(2) Richtek USA Inc.

RTQ2522BGQW(2)

Richtek USA Inc.

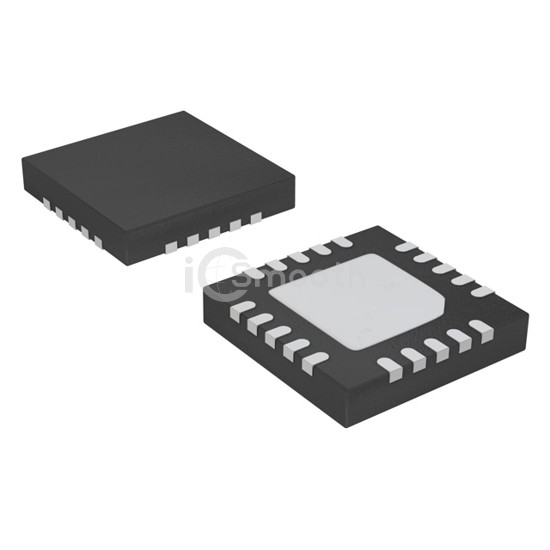

IC REG LINEAR POS ADJ 2A 20WQFN

RTQ2522BGQW(2) is a PMIC - Voltage Regulators - Linear manufactured by Richtek USA Inc.. IC REG LINEAR POS ADJ 2A 20WQFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C (TA), package / case 20-WQFN Exposed Pad, current - supply (max) 2 mA.

Datasheet Request a Quote

In Stock: 4,900

Tiered Pricing USD

1+ $1.5800 —

10+ $1.1530 -27%

25+ $1.0468 -34%

100+ $0.9299 -41%

250+ $0.8742 -45%

500+ $0.8406 -47% BEST

Specifications

18 parameters

Product Status	Active
Output Configuration	Positive
Output Type	Adjustable
Number of Regulators	1
Voltage - Input (Max)	5.5V
Voltage - Output (Min/Fixed)	0.8V
Voltage - Output (Max)	3.6V
Voltage Dropout (Max)	0.15V @ 2A
Current - Output	2A

Current - Quiescent (Iq)	-
Current - Supply (Max)	2 mA
PSRR	60dB ~ 30dB (1kHz ~ 300kHz)
Control Features	Enable, Power Good, Soft Start
Protection Features	Current Limit, Thermal Shutdown, UVLO
Operating Temperature	-40°C ~ 105°C (TA)
Mounting Type	Surface Mount
Package / Case	20-WQFN Exposed Pad
Supplier Device Package	20-WQFN (5x5)
