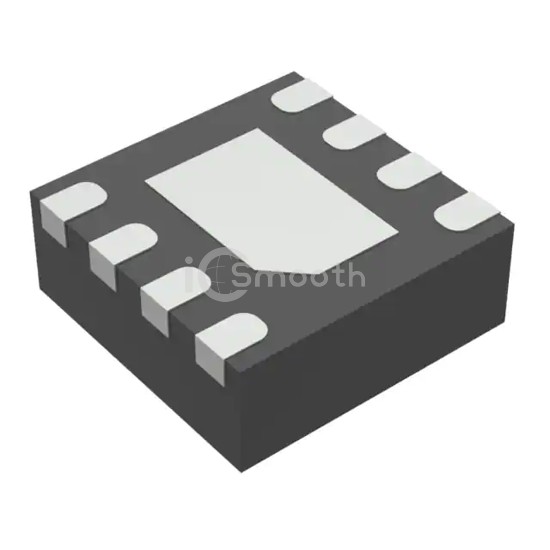

Name: RT9614CGQW
Brand: Richtek USA Inc.
SKU: RT9614CGQW
Price: 0.26 USD
Availability: InStock

REF: RT9614CGQW Richtek USA Inc.

RT9614CGQW

IC BUCK MOSFET DRVR WDFN-8S

RT9614CGQW is a PMIC - Gate Drivers manufactured by Richtek USA Inc.. IC BUCK MOSFET DRVR WDFN-8S. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply 4.5V ~ 13.2V, package / case 8-WFDFN Exposed Pad.

Datasheet Request a Quote

In Stock: 2,281

Tiered Pricing USD

2,500+ $0.2576 —

5,000+ $0.2505 -3%

7,500+ $0.2470 -4%

12,500+ $0.2431 -6%

17,500+ $0.2408 -7%

25,000+ $0.2386 -7% BEST

Specifications

15 parameters

Product Status	Active
Driven Configuration	High-Side or Low-Side
Channel Type	Synchronous
Number of Drivers	2
Gate Type	N-Channel MOSFET
Voltage - Supply	4.5V ~ 13.2V
Logic Voltage - VIL, VIH	-
Current - Peak Output (Source, Sink)	-

Input Type	Non-Inverting
High Side Voltage - Max (Bootstrap)	46 V
Rise / Fall Time (Typ)	25ns, 12ns
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	8-WFDFN Exposed Pad
Supplier Device Package	8-WDFN-SL (2x2)
