Name: RT9055-NNWSC
Brand: Richtek USA Inc.
SKU: RT9055-NNWSC
Price: 0.79 USD
Availability: InStock

REF: RT9055-NNWSC Richtek USA Inc.

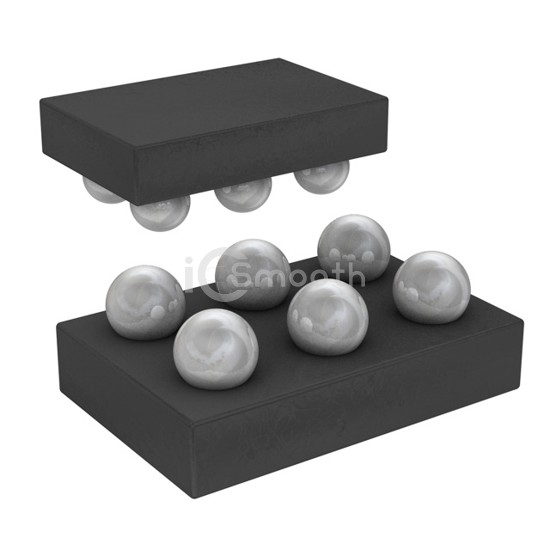

RT9055-NNWSC

IC REG LINEAR 2.85V/2.85V 6WLCSP

RT9055-NNWSC is a PMIC - Voltage Regulators - Linear manufactured by Richtek USA Inc.. IC REG LINEAR 2.85V/2.85V 6WLCSP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case 6-UFBGA, WLCSP, current - output 300mA, 300mA.

Datasheet Request a Quote

In Stock: 2,889

Tiered Pricing USD

1+ $0.7900 —

10+ $0.5610 -29%

25+ $0.5040 -36%

100+ $0.4419 -44%

250+ $0.4122 -48%

500+ $0.3943 -50%

1,000+ $0.3796 -52% BEST

Specifications

18 parameters

Product Status	Active
Output Configuration	Positive
Output Type	Fixed
Number of Regulators	2
Voltage - Input (Max)	5.5V
Voltage - Output (Min/Fixed)	2.85V, 2.85V
Voltage - Output (Max)	-
Voltage Dropout (Max)	0.3V @ 300mA, 0.3V @ 300mA
Current - Output	300mA, 300mA

Current - Quiescent (Iq)	58 µA
Current - Supply (Max)	-
PSRR	70dB ~ 38dB (100Hz ~ 300kHz)
Control Features	Enable
Protection Features	Over Current, Over Temperature, Short Circuit
Operating Temperature	-40°C ~ 85°C
Mounting Type	Surface Mount
Package / Case	6-UFBGA, WLCSP
Supplier Device Package	6-WLCSP (1.2x0.80)
