Name: RT9012-MGGQW
Brand: Richtek USA Inc.
SKU: RT9012-MGGQW
Availability: InStock

REF: RT9012-MGGQW Richtek USA Inc.

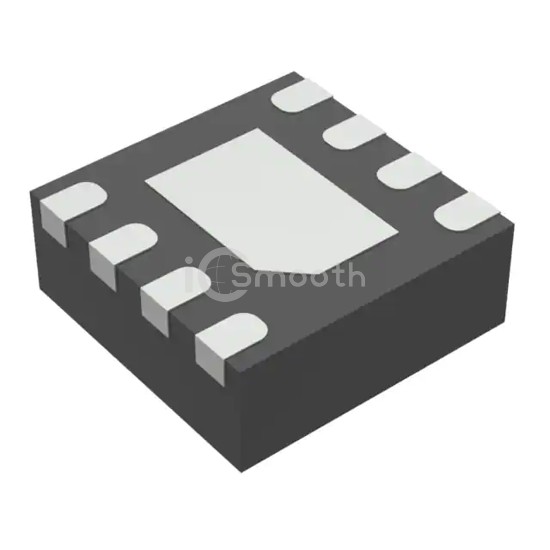

RT9012-MGGQW

IC REG LINEAR 1.8V/2.8V 8WDFN

RT9012-MGGQW is a PMIC - Voltage Regulators - Linear manufactured by Richtek USA Inc.. IC REG LINEAR 1.8V/2.8V 8WDFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case 8-WFDFN Exposed Pad, current - output 300mA, 300mA.

Datasheet Request a Quote

In Stock: 3,842

Specifications

18 parameters

Product Status	Active
Output Configuration	Positive
Output Type	Fixed
Number of Regulators	2
Voltage - Input (Max)	5.5V
Voltage - Output (Min/Fixed)	1.8V, 2.8V
Voltage - Output (Max)	-
Voltage Dropout (Max)	0.24V @ 300mA (Typ), 0.24V @ 300mA (Typ)
Current - Output	300mA, 300mA

Current - Quiescent (Iq)	80 µA
Current - Supply (Max)	-
PSRR	65dB ~ 50dB (100Hz ~ 10kHz)
Control Features	Enable, Power On Reset
Protection Features	Over Current, Over Temperature, Short Circuit
Operating Temperature	-40°C ~ 85°C
Mounting Type	Surface Mount
Package / Case	8-WFDFN Exposed Pad
Supplier Device Package	8-WDFN (2x2)
