Name: RT9011-JSGQW
Brand: Richtek USA Inc.
SKU: RT9011-JSGQW
Availability: InStock

REF: RT9011-JSGQW Richtek USA Inc.

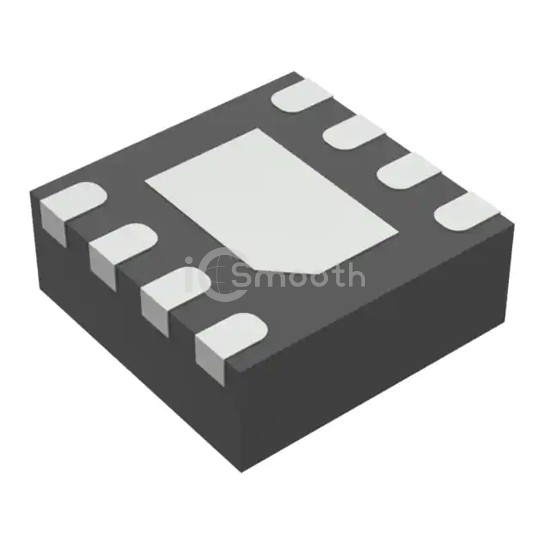

RT9011-JSGQW

IC REG LINEAR 2.5V/3.3V 8WDFN

RT9011-JSGQW is a PMIC - Voltage Regulators - Linear manufactured by Richtek USA Inc.. IC REG LINEAR 2.5V/3.3V 8WDFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case 8-WFDFN Exposed Pad, current - output 300mA, 300mA.

Datasheet Request a Quote

In Stock: 3,773

Specifications

18 parameters

Product Status	Active
Output Configuration	Positive
Output Type	Fixed
Number of Regulators	2
Voltage - Input (Max)	5.5V
Voltage - Output (Min/Fixed)	2.5V, 3.3V
Voltage - Output (Max)	-
Voltage Dropout (Max)	0.33V @ 300mA, 0.33V @ 300mA
Current - Output	300mA, 300mA

Current - Quiescent (Iq)	80 µA
Current - Supply (Max)	-
PSRR	70dB ~ 38dB (100Hz ~ 300kHz)
Control Features	Enable
Protection Features	Over Current, Over Temperature, Short Circuit
Operating Temperature	-40°C ~ 85°C
Mounting Type	Surface Mount
Package / Case	8-WFDFN Exposed Pad
Supplier Device Package	8-WDFN (2x2)
