Name: RT9011-CSGQWC
Brand: Richtek USA Inc.
SKU: RT9011-CSGQWC
Availability: InStock

REF: RT9011-CSGQWC Richtek USA Inc.

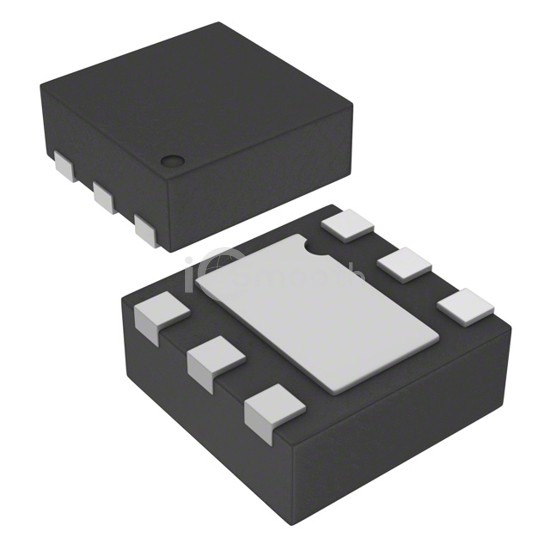

RT9011-CSGQWC

IC REG LINEAR 1.2V/3.3V 6WDFN

RT9011-CSGQWC is a PMIC - Voltage Regulators - Linear manufactured by Richtek USA Inc.. IC REG LINEAR 1.2V/3.3V 6WDFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case 6-WFDFN Exposed Pad, current - output 300mA, 300mA.

Datasheet Request a Quote

In Stock: 9,994

Specifications

18 parameters

Product Status	Active
Output Configuration	Positive
Output Type	Fixed
Number of Regulators	2
Voltage - Input (Max)	5.5V
Voltage - Output (Min/Fixed)	1.2V, 3.3V
Voltage - Output (Max)	-
Voltage Dropout (Max)	0.33V @ 300mA, 0.33V @ 300mA
Current - Output	300mA, 300mA

Current - Quiescent (Iq)	80 µA
Current - Supply (Max)	-
PSRR	70dB ~ 38dB (100Hz ~ 300kHz)
Control Features	Enable
Protection Features	Over Current, Over Temperature, Short Circuit
Operating Temperature	-40°C ~ 85°C
Mounting Type	Surface Mount
Package / Case	6-WFDFN Exposed Pad
Supplier Device Package	6-WDFN (1.6x1.6)
