Name: RT8525DGQW
Brand: Richtek USA Inc.
SKU: RT8525DGQW
Price: 1.45 USD
Availability: InStock

REF: RT8525DGQW Richtek USA Inc.

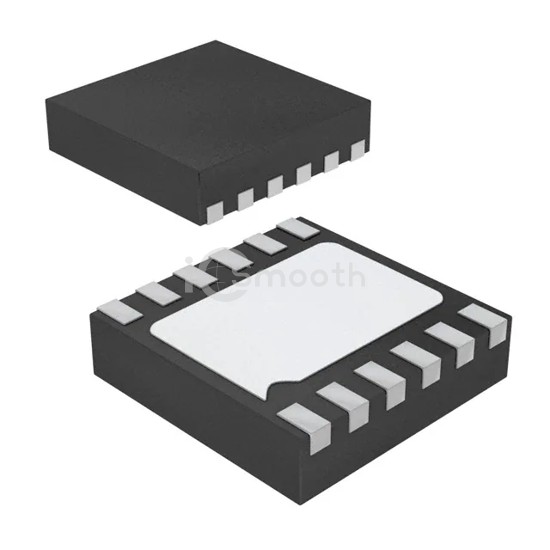

RT8525DGQW

IC REG BOOST CTRLR WDFN-12

RT8525DGQW is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by Richtek USA Inc.. IC REG BOOST CTRLR WDFN-12. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply (vcc/vdd) 4.5V ~ 25V, package / case 12-WFDFN Exposed Pad.

Datasheet Request a Quote

In Stock: 4,259

Tiered Pricing USD

1+ $1.4500 —

10+ $1.0560 -27%

25+ $0.9580 -34%

100+ $0.8497 -41%

250+ $0.7980 -45%

500+ $0.7669 -47% BEST

Specifications

18 parameters

Product Status	Active
Output Type	Transistor Driver
Function	Step-Up
Output Configuration	Positive
Topology	Boost
Number of Outputs	1
Output Phases	1
Voltage - Supply (Vcc/Vdd)	4.5V ~ 25V
Frequency - Switching	200kHz

Duty Cycle (Max)	90%
Synchronous Rectifier	No
Clock Sync	No
Serial Interfaces	-
Control Features	Enable, Frequency Control, Soft Start
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	12-WFDFN Exposed Pad
Supplier Device Package	12-WDFN (3x3)
