Name: RT8209MGQW
Brand: Richtek USA Inc.
SKU: RT8209MGQW
Price: 0.44 USD
Availability: InStock

REF: RT8209MGQW Richtek USA Inc.

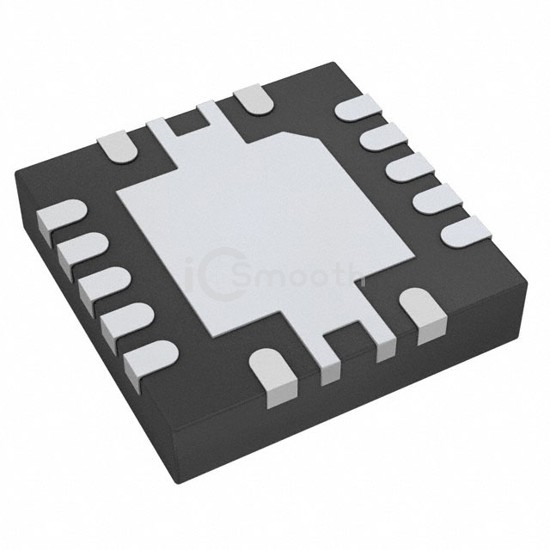

RT8209MGQW

IC REG CTRLR BUCK 14WQFN

RT8209MGQW is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by Richtek USA Inc.. IC REG CTRLR BUCK 14WQFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply (vcc/vdd) 4.5V ~ 5.5V, package / case 14-PowerWFQFN.

Datasheet Request a Quote

In Stock: 5,161

Tiered Pricing USD

2,500+ $0.4429 —

5,000+ $0.4148 -6%

7,500+ $0.4007 -10%

12,500+ $0.3849 -13%

17,500+ $0.3756 -15%

25,000+ $0.3667 -17% BEST

Specifications

18 parameters

Product Status	Discontinued at Digi-Key
Output Type	Transistor Driver
Function	Step-Down
Output Configuration	Positive
Topology	Buck
Number of Outputs	1
Output Phases	1
Voltage - Supply (Vcc/Vdd)	4.5V ~ 5.5V
Frequency - Switching	-

Duty Cycle (Max)	-
Synchronous Rectifier	Yes
Clock Sync	No
Serial Interfaces	-
Control Features	Current Limit, Enable, On Time Control, Phase Control, Power Good
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	14-PowerWFQFN
Supplier Device Package	14-WQFN (3.5x3.5)
