Name: RT7296CGJ8F
Brand: Richtek USA Inc.
SKU: RT7296CGJ8F
Availability: InStock

REF: RT7296CGJ8F Richtek USA Inc.

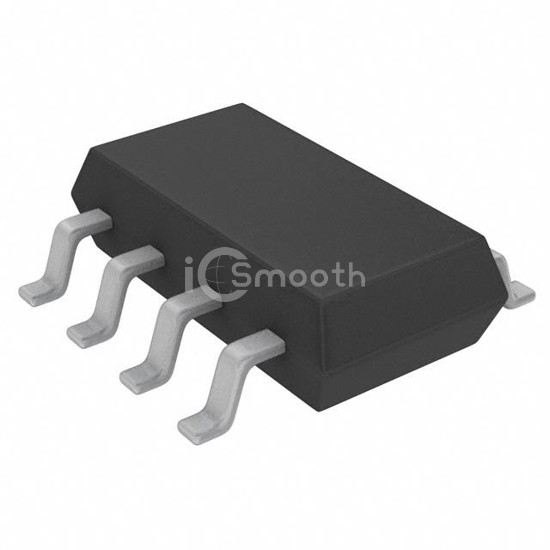

RT7296CGJ8F

IC REG BUCK ADJ 3A TSOT23-8

RT7296CGJ8F is a PMIC - Voltage Regulators - DC DC Switching Regulators manufactured by Richtek USA Inc.. IC REG BUCK ADJ 3A TSOT23-8. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case SOT-23-8 Thin, TSOT-23-8, current - output 3A.

Datasheet Request a Quote

In Stock: 1,953

Specifications

17 parameters

Product Status	Active
Function	Step-Down
Output Configuration	Positive
Topology	Buck
Output Type	Adjustable
Number of Outputs	1
Voltage - Input (Min)	4.5V
Voltage - Input (Max)	17V
Voltage - Output (Min/Fixed)	0.807V

Voltage - Output (Max)	14.45V
Current - Output	3A
Frequency - Switching	1.4MHz
Synchronous Rectifier	Yes
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	SOT-23-8 Thin, TSOT-23-8
Supplier Device Package	TSOT-23-8
