Name: RT6160AWSC
Brand: Richtek USA Inc.
SKU: RT6160AWSC
Price: 2.62 USD
Availability: InStock

REF: RT6160AWSC Richtek USA Inc.

RT6160AWSC

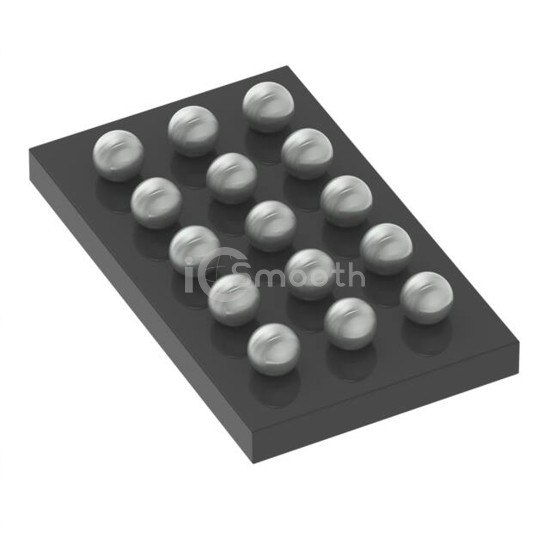

IC BUCK-BOOST 3A WL-CSP-15

RT6160AWSC is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by Richtek USA Inc.. IC BUCK-BOOST 3A WL-CSP-15. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply (vcc/vdd) 2.2V ~ 5.5V, package / case 15-UFBGA, WLCSP.

Datasheet Request a Quote

In Stock: 6,549

Tiered Pricing USD

1+ $2.6200 —

10+ $1.9510 -26%

25+ $1.7836 -32%

100+ $1.5994 -39%

250+ $1.5114 -42%

500+ $1.4584 -44%

1,000+ $1.4148 -46% BEST

Specifications

18 parameters

Product Status	Active
Output Type	Transistor Driver
Function	Step-Up/Step-Down
Output Configuration	Positive
Topology	Buck-Boost
Number of Outputs	1
Output Phases	1
Voltage - Supply (Vcc/Vdd)	2.2V ~ 5.5V
Frequency - Switching	2.2MHz, 500kHz ~ 3MHz

Duty Cycle (Max)	-
Synchronous Rectifier	Yes
Clock Sync	No
Serial Interfaces	I²C
Control Features	Enable, Frequency Control, Power Good, Ramp, Slew Control, Soft Start
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	15-UFBGA, WLCSP
Supplier Device Package	15-WL-CSP (BSC) (1.4x2.3)
