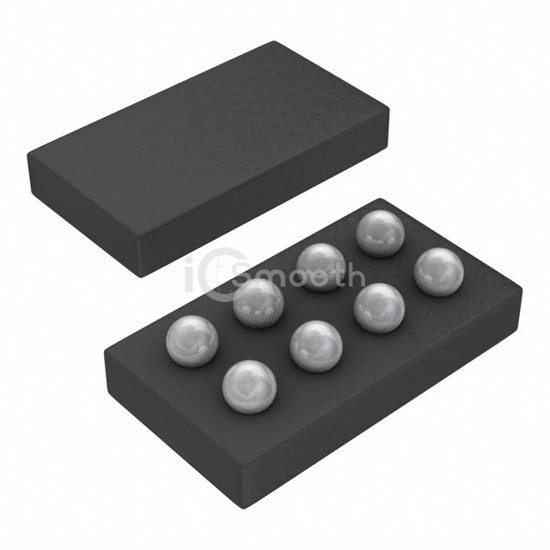

Name: RT5707WSC
Brand: Richtek USA Inc.
SKU: RT5707WSC
Price: 0.47 USD
Availability: InStock

REF: RT5707WSC Richtek USA Inc.

RT5707WSC

IC BUCK ADJ 0.6A SYNC WL-CSP-8

RT5707WSC is a PMIC - Voltage Regulators - DC DC Switching Regulators manufactured by Richtek USA Inc.. IC BUCK ADJ 0.6A SYNC WL-CSP-8. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 8-UFBGA, WLCSP, current - output 600mA.

Datasheet Request a Quote

In Stock: 9,737

Tiered Pricing USD

1+ $0.4700 —

10+ $0.3310 -30%

25+ $0.2956 -37%

100+ $0.2565 -45%

250+ $0.2379 -49%

500+ $0.2266 -52%

1,000+ $0.2173 -54% BEST

Specifications

17 parameters

Product Status	Active
Function	Step-Down
Output Configuration	Positive
Topology	Buck
Output Type	Programmable
Number of Outputs	1
Voltage - Input (Min)	2.2V
Voltage - Input (Max)	5.5V
Voltage - Output (Min/Fixed)	1.2V

Voltage - Output (Max)	3.3V
Current - Output	600mA
Frequency - Switching	1.2MHz
Synchronous Rectifier	Yes
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	8-UFBGA, WLCSP
Supplier Device Package	8-WLCSP (1.6x0.90)
