Name: ZL8101ALAF
Brand: Renesas Electronics America Inc
SKU: ZL8101ALAF
Price: 7.27 USD
Availability: InStock

REF: ZL8101ALAF Renesas Electronics America Inc

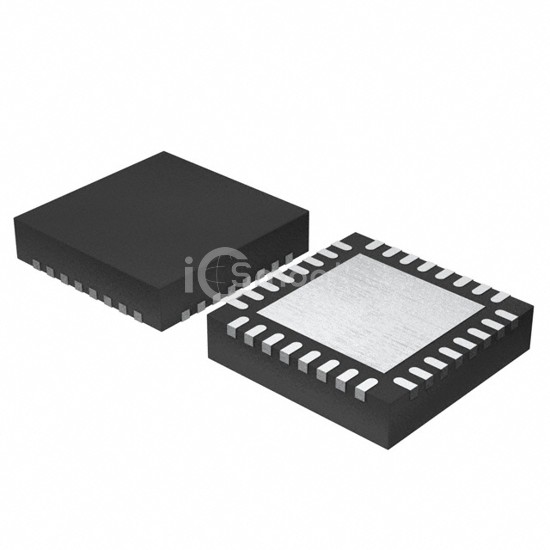

ZL8101ALAF

Renesas Electronics America Inc

IC REG CTRLR BUCK PMBUS 32QFN

ZL8101ALAF is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by Renesas Electronics America Inc. IC REG CTRLR BUCK PMBUS 32QFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply (vcc/vdd) 4.5V ~ 14V, package / case 32-VFQFN Exposed Pad.

Datasheet Request a Quote

In Stock: 4,678

Tiered Pricing USD

1+ $7.2700 —

10+ $5.6090 -23%

60+ $4.8865 -33%

120+ $4.6910 -35%

300+ $4.4846 -38%

540+ $4.3775 -40% BEST

Specifications

18 parameters

Product Status	Obsolete
Output Type	Transistor Driver
Function	Step-Down
Output Configuration	Positive
Topology	Buck
Number of Outputs	1
Output Phases	1
Voltage - Supply (Vcc/Vdd)	4.5V ~ 14V
Frequency - Switching	200kHz ~ 1.4MHz

Duty Cycle (Max)	95%
Synchronous Rectifier	Yes
Clock Sync	Yes
Serial Interfaces	I²C, PMBus, SMBus
Control Features	Enable, Power Good, Soft Start, Tracking
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	32-VFQFN Exposed Pad
Supplier Device Package	32-QFN (5x5)
