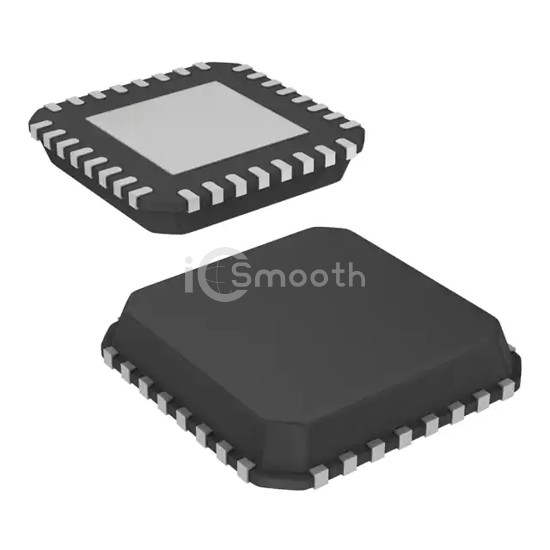

Name: ZL2004ALNN-01
Brand: Renesas Electronics America Inc
SKU: ZL2004ALNN-01
Availability: InStock

REF: ZL2004ALNN-01 Renesas Electronics America Inc

ZL2004ALNN-01

IC REG CTRLR BUCK PMBUS 32QFN

ZL2004ALNN-01 is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by Renesas Electronics America Inc. IC REG CTRLR BUCK PMBUS 32QFN. Key specifications: mounting type Surface Mount, operating temperature 0°C ~ 65°C (TA), voltage - supply (vcc/vdd) 8V ~ 10V, package / case 32-VFQFN Exposed Pad.

Datasheet Request a Quote

In Stock: 3,967

Specifications

18 parameters

Product Status	Obsolete
Output Type	PWM Signal
Function	Step-Down
Output Configuration	Positive
Topology	Buck
Number of Outputs	1
Output Phases	1
Voltage - Supply (Vcc/Vdd)	8V ~ 10V
Frequency - Switching	400kHz

Duty Cycle (Max)	-
Synchronous Rectifier	-
Clock Sync	Yes
Serial Interfaces	I²C, PMBus, SMBus
Control Features	Current Limit, Enable, Power Good, Soft Start, Tracking
Operating Temperature	0°C ~ 65°C (TA)
Mounting Type	Surface Mount
Package / Case	32-VFQFN Exposed Pad
Supplier Device Package	32-QFN (5x5)
