UPG2409TB-E4-A

In Stock: 47,750

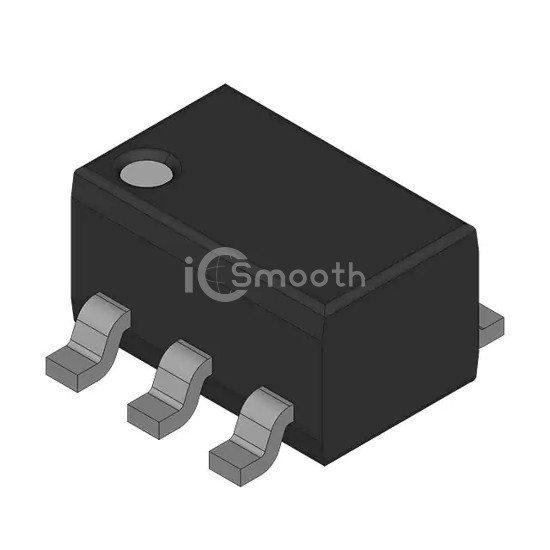

UPG2409TB-E4-A - Renesas Electronics America Inc - RF Switches
REF: UPG2409TB-E4-A Renesas Electronics America Inc
UPG2409TB-E4-A

Renesas Electronics America Inc

DIVERSITY SWITCH

UPG2409TB-E4-A is a RF Switches manufactured by Renesas Electronics America Inc. DIVERSITY SWITCH. Key specifications: operating temperature -45°C ~ 85°C, package / case 6-TSSOP, SC-88, SOT-363, frequency range 500MHz ~ 3.8GHz, impedance 50Ohm.

Datasheet Request a Quote

In Stock: 47,750

Specifications

16 parameters
Product StatusObsolete
RF Type802.11b/g/n
TopologyReflective
CircuitSPDT
Frequency Range500MHz ~ 3.8GHz
Isolation19dB
Insertion Loss0.6dB
Test Frequency3.8GHz
P1dB37dBm
IIP360dBm
Features-
Impedance50Ohm
Voltage - Supply-
Operating Temperature-45°C ~ 85°C
Package / Case6-TSSOP, SC-88, SOT-363
Supplier Device Package6-SuperMiniMold
