UPD5716GR-E1-A

In Stock: 6,000

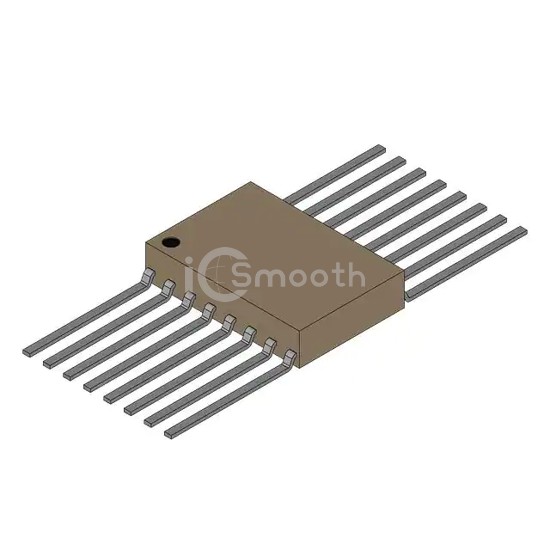

UPD5716GR-E1-A - Renesas Electronics America Inc - RF Switches
REF: UPD5716GR-E1-A Renesas Electronics America Inc
UPD5716GR-E1-A

Renesas Electronics America Inc

DPDT, 2150MHZ MAX, 2-CHANNEL

UPD5716GR-E1-A is a RF Switches manufactured by Renesas Electronics America Inc. DPDT, 2150MHZ MAX, 2-CHANNEL. Key specifications: operating temperature -40°C ~ 85°C, voltage - supply 4V ~ 5.5V, package / case 16-TSSOP (0.173", 4.40mm Width) Exposed Pad, frequency range 250MHz ~ 2.15GHz.

Datasheet Request a Quote

In Stock: 6,000

Specifications

16 parameters
Product StatusObsolete
RF TypeGeneral Purpose
TopologyAbsorptive
Circuit-
Frequency Range250MHz ~ 2.15GHz
Isolation29dB
Insertion Loss6.7dB
Test Frequency2.15GHz
P1dB-
IIP3-
Features-
Impedance50Ohm
Voltage - Supply4V ~ 5.5V
Operating Temperature-40°C ~ 85°C
Package / Case16-TSSOP (0.173", 4.40mm Width) Exposed Pad
Supplier Device Package16-HTSSOP
