Name: RJP60V0DPM-00#T1
Brand: Renesas Electronics America Inc
SKU: RJP60V0DPM-00#T1
Price: 3.65 USD
Availability: InStock

REF: RJP60V0DPM-00#T1 Renesas Electronics America Inc

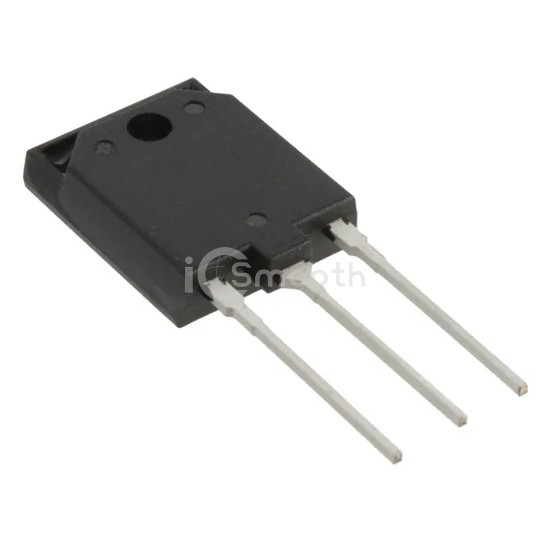

RJP60V0DPM-00#T1

Renesas Electronics America Inc

IGBT 600V 45A 40W TO-3PFM

RJP60V0DPM-00#T1 is a Transistors - IGBTs - Single manufactured by Renesas Electronics America Inc. IGBT 600V 45A 40W TO-3PFM. Key specifications: mounting type Through Hole, operating temperature 150°C (TJ), package / case TO-220-3 Full Pack, current - collector (ic) (max) 45 A.

Datasheet Request a Quote

In Stock: 40

Specifications

17 parameters

Product Status	Active
IGBT Type	Trench
Voltage - Collector Emitter Breakdown (Max)	600 V
Current - Collector (Ic) (Max)	45 A
Current - Collector Pulsed (Icm)	-
Vce(on) (Max) @ Vge, Ic	2.1V @ 15V, 22A
Power - Max	40 W
Switching Energy	-
Input Type	Standard

Gate Charge	75 nC
Td (on/off) @ 25°C	45ns/100ns
Test Condition	300V, 22A, 5Ohm, 15V
Reverse Recovery Time (trr)	-
Operating Temperature	150°C (TJ)
Mounting Type	Through Hole
Package / Case	TO-220-3 Full Pack
Supplier Device Package	TO-3PFM
