RJP60F5DPM-00#T1

In Stock: 7,719

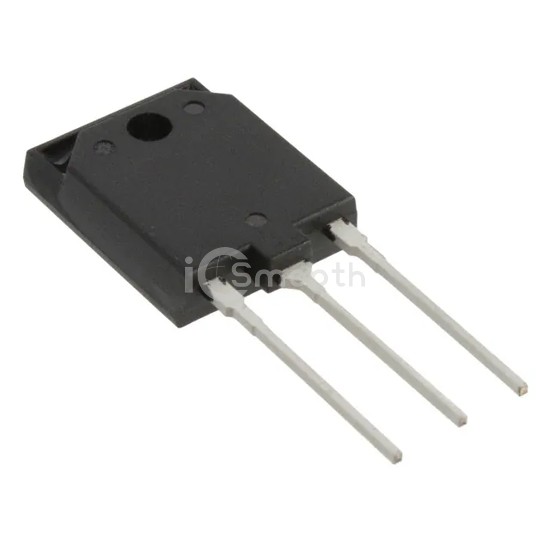

RJP60F5DPM-00#T1 - Renesas Electronics America Inc - Transistors - IGBTs - Single
REF: RJP60F5DPM-00#T1 Renesas Electronics America Inc
RJP60F5DPM-00#T1

Renesas Electronics America Inc

IGBT 600V 80A 45W TO-3PFM

RJP60F5DPM-00#T1 is a Transistors - IGBTs - Single manufactured by Renesas Electronics America Inc. IGBT 600V 80A 45W TO-3PFM. Key specifications: mounting type Through Hole, operating temperature 150°C (TJ), package / case TO-220-3 Full Pack, current - collector (ic) (max) 80 A.

Datasheet Request a Quote

In Stock: 7,719

Specifications

17 parameters
Product StatusDiscontinued at Digi-Key
IGBT TypeTrench
Voltage - Collector Emitter Breakdown (Max)600 V
Current - Collector (Ic) (Max)80 A
Current - Collector Pulsed (Icm)-
Vce(on) (Max) @ Vge, Ic1.8V @ 15V, 40A
Power - Max45 W
Switching Energy-
Input TypeStandard
Gate Charge74 nC
Td (on/off) @ 25°C53ns/90ns
Test Condition400V, 30A, 5Ohm, 15V
Reverse Recovery Time (trr)-
Operating Temperature150°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-220-3 Full Pack
Supplier Device PackageTO-3PFM
