Name: RJP60D0DPK-00#T0
Brand: Renesas Electronics America Inc
SKU: RJP60D0DPK-00#T0
Availability: InStock

REF: RJP60D0DPK-00#T0 Renesas Electronics America Inc

RJP60D0DPK-00#T0

Renesas Electronics America Inc

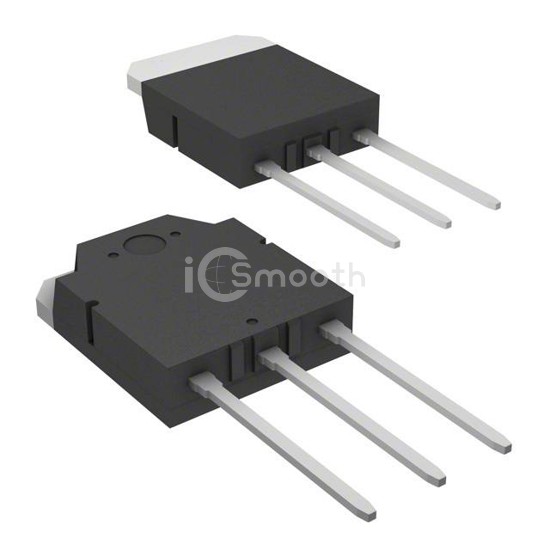

IGBT 600V 45A 140W TO-3P

RJP60D0DPK-00#T0 is a Transistors - IGBTs - Single manufactured by Renesas Electronics America Inc. IGBT 600V 45A 140W TO-3P. Key specifications: mounting type Through Hole, operating temperature 150°C (TJ), package / case TO-220-3 Full Pack, current - collector (ic) (max) 45 A.

Datasheet Request a Quote

In Stock: 3,658

Specifications

17 parameters

Product Status	Active
IGBT Type	-
Voltage - Collector Emitter Breakdown (Max)	600 V
Current - Collector (Ic) (Max)	45 A
Current - Collector Pulsed (Icm)	-
Vce(on) (Max) @ Vge, Ic	2.2V @ 15V, 22A
Power - Max	140 W
Switching Energy	-
Input Type	Standard

Gate Charge	45 nC
Td (on/off) @ 25°C	35ns/90ns
Test Condition	300V, 22A, 5Ohm, 15V
Reverse Recovery Time (trr)	-
Operating Temperature	150°C (TJ)
Mounting Type	Through Hole
Package / Case	TO-220-3 Full Pack
Supplier Device Package	TO-3P
