RJH60M1DPE-00#J3

In Stock: 1,987

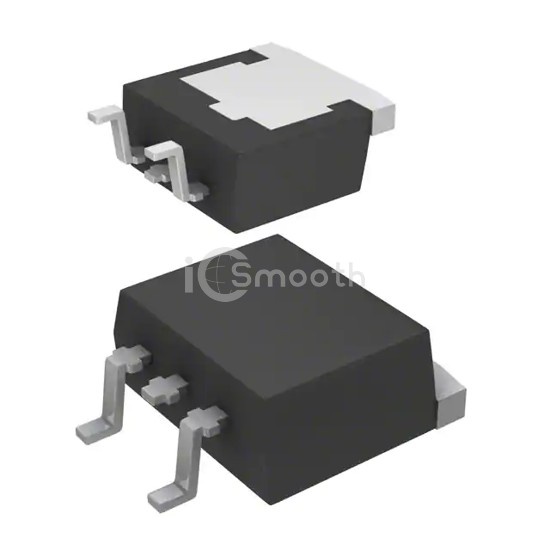

RJH60M1DPE-00#J3 - Renesas Electronics America Inc - Transistors - IGBTs - Single
REF: RJH60M1DPE-00#J3 Renesas Electronics America Inc
RJH60M1DPE-00#J3

Renesas Electronics America Inc

IGBT 600V 16A 52W LDPAK

RJH60M1DPE-00#J3 is a Transistors - IGBTs - Single manufactured by Renesas Electronics America Inc. IGBT 600V 16A 52W LDPAK. Key specifications: mounting type Surface Mount, operating temperature 150°C (TJ), package / case SC-83, current - collector (ic) (max) 16 A.

Datasheet Request a Quote

In Stock: 1,987

Specifications

17 parameters
Product StatusObsolete
IGBT TypeTrench
Voltage - Collector Emitter Breakdown (Max)600 V
Current - Collector (Ic) (Max)16 A
Current - Collector Pulsed (Icm)-
Vce(on) (Max) @ Vge, Ic2.4V @ 15V, 8A
Power - Max52 W
Switching Energy80µJ (on), 90µJ (off)
Input TypeStandard
Gate Charge20.5 nC
Td (on/off) @ 25°C30ns/55ns
Test Condition300V, 8A, 5Ohm, 15V
Reverse Recovery Time (trr)100 ns
Operating Temperature150°C (TJ)
Mounting TypeSurface Mount
Package / CaseSC-83
Supplier Device PackageLDPAK
