RJH60D6DPK-00#T0

In Stock: 9,255

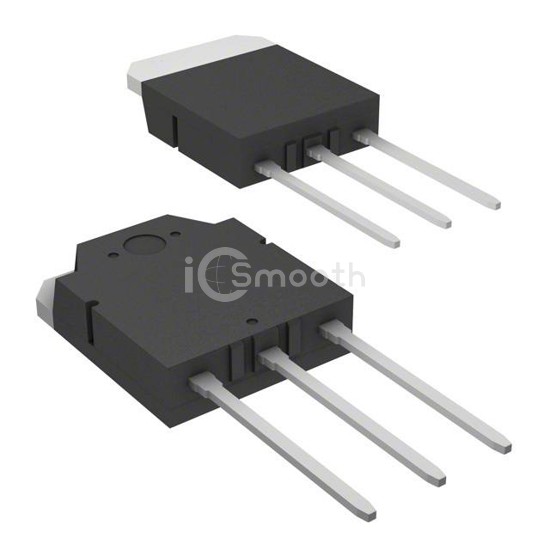

RJH60D6DPK-00#T0 - Renesas Electronics America Inc - Transistors - IGBTs - Single
REF: RJH60D6DPK-00#T0 Renesas Electronics America Inc
RJH60D6DPK-00#T0

Renesas Electronics America Inc

IGBT 600V 80A 260W TO3P

RJH60D6DPK-00#T0 is a Transistors - IGBTs - Single manufactured by Renesas Electronics America Inc. IGBT 600V 80A 260W TO3P. Key specifications: mounting type Through Hole, operating temperature 150°C (TJ), package / case TO-220-3 Full Pack, current - collector (ic) (max) 80 A.

Datasheet Request a Quote

In Stock: 9,255

Specifications

17 parameters
Product StatusActive
IGBT TypeTrench
Voltage - Collector Emitter Breakdown (Max)600 V
Current - Collector (Ic) (Max)80 A
Current - Collector Pulsed (Icm)-
Vce(on) (Max) @ Vge, Ic2.2V @ 15V, 40A
Power - Max260 W
Switching Energy850µJ (on), 600µJ (off)
Input TypeStandard
Gate Charge104 nC
Td (on/off) @ 25°C50ns/160ns
Test Condition300V, 40A, 5Ohm, 15V
Reverse Recovery Time (trr)100 ns
Operating Temperature150°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-220-3 Full Pack
Supplier Device PackageTO-3P
