RJH60D5DPM-00#T1

In Stock: 6,272

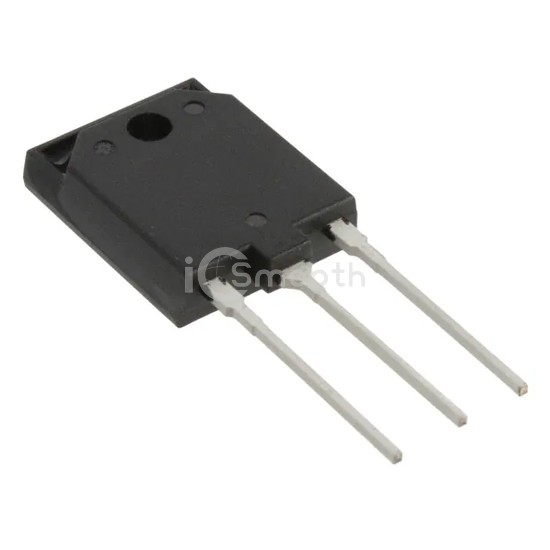

RJH60D5DPM-00#T1 - Renesas Electronics America Inc - Transistors - IGBTs - Single
REF: RJH60D5DPM-00#T1 Renesas Electronics America Inc
RJH60D5DPM-00#T1

Renesas Electronics America Inc

IGBT 600V 75A 45W TO3PFM

RJH60D5DPM-00#T1 is a Transistors - IGBTs - Single manufactured by Renesas Electronics America Inc. IGBT 600V 75A 45W TO3PFM. Key specifications: mounting type Through Hole, operating temperature 150°C (TJ), package / case TO-220-3 Full Pack, current - collector (ic) (max) 75 A.

Datasheet Request a Quote

In Stock: 6,272

Specifications

17 parameters
Product StatusActive
IGBT TypeTrench
Voltage - Collector Emitter Breakdown (Max)600 V
Current - Collector (Ic) (Max)75 A
Current - Collector Pulsed (Icm)-
Vce(on) (Max) @ Vge, Ic2.2V @ 15V, 37A
Power - Max45 W
Switching Energy650µJ (on), 270µJ (off)
Input TypeStandard
Gate Charge78 nC
Td (on/off) @ 25°C50ns/135ns
Test Condition300V, 37A, 5Ohm, 15V
Reverse Recovery Time (trr)100 ns
Operating Temperature150°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-220-3 Full Pack
Supplier Device PackageTO-3PFM
