RJH60A01RDPD-A0#J2

In Stock: 6,095
RJH60A01RDPD-A0#J2 - Renesas Electronics America Inc - Transistors - IGBTs - Single
REF: RJH60A01RDPD-A0#J2 Renesas Electronics America Inc
RJH60A01RDPD-A0#J2

Renesas Electronics America Inc

IGBT 600V 5A

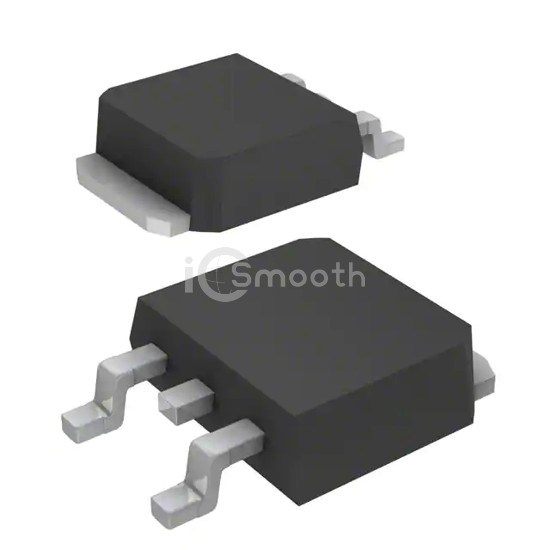

RJH60A01RDPD-A0#J2 is a Transistors - IGBTs - Single manufactured by Renesas Electronics America Inc. IGBT 600V 5A. Key specifications: mounting type Surface Mount, operating temperature 150°C (TJ), package / case TO-252-3, DPak (2 Leads + Tab), SC-63, current - collector (ic) (max) 10 A.

Datasheet Request a Quote

In Stock: 6,095

Specifications

17 parameters
Product StatusObsolete
IGBT TypeTrench
Voltage - Collector Emitter Breakdown (Max)600 V
Current - Collector (Ic) (Max)10 A
Current - Collector Pulsed (Icm)-
Vce(on) (Max) @ Vge, Ic2.3V @ 15V, 5A
Power - Max29.4 W
Switching Energy130µJ (on), 70µJ (off)
Input TypeStandard
Gate Charge11 nC
Td (on/off) @ 25°C30ns/40ns
Test Condition300V, 5A, 5Ohm, 15V
Reverse Recovery Time (trr)100 ns
Operating Temperature150°C (TJ)
Mounting TypeSurface Mount
Package / CaseTO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device PackageTO-252
