RJH1CV7DPK-00#T0

In Stock: 2,548

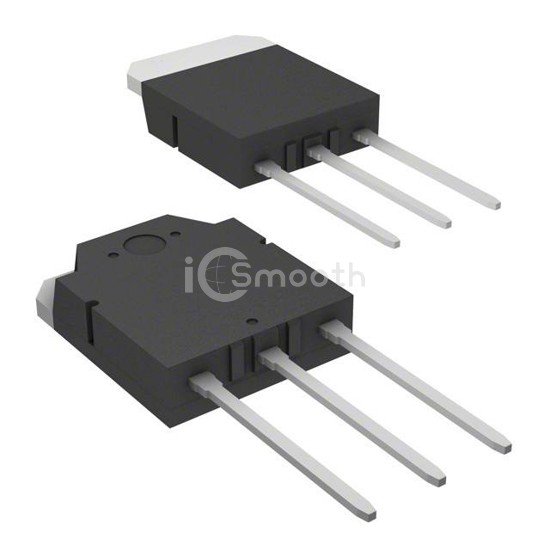

RJH1CV7DPK-00#T0 - Renesas Electronics America Inc - Transistors - IGBTs - Single
REF: RJH1CV7DPK-00#T0 Renesas Electronics America Inc
RJH1CV7DPK-00#T0

Renesas Electronics America Inc

IGBT 1200V 70A 320W TO-3P

RJH1CV7DPK-00#T0 is a Transistors - IGBTs - Single manufactured by Renesas Electronics America Inc. IGBT 1200V 70A 320W TO-3P. Key specifications: mounting type Through Hole, operating temperature 150°C (TJ), package / case TO-220-3 Full Pack, current - collector (ic) (max) 70 A.

Datasheet Request a Quote

In Stock: 2,548

Specifications

17 parameters
Product StatusObsolete
IGBT TypeTrench
Voltage - Collector Emitter Breakdown (Max)1200 V
Current - Collector (Ic) (Max)70 A
Current - Collector Pulsed (Icm)-
Vce(on) (Max) @ Vge, Ic2.3V @ 15V, 35A
Power - Max320 W
Switching Energy3.2mJ (on), 2.5mJ (off)
Input TypeStandard
Gate Charge166 nC
Td (on/off) @ 25°C53ns/185ns
Test Condition600V, 35A, 5Ohm, 15V
Reverse Recovery Time (trr)200 ns
Operating Temperature150°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-220-3 Full Pack
Supplier Device PackageTO-3P
