Name: RJH1CV5DPK-00#T0
Brand: Renesas Electronics America Inc
SKU: RJH1CV5DPK-00#T0
Availability: InStock

REF: RJH1CV5DPK-00#T0 Renesas Electronics America Inc

RJH1CV5DPK-00#T0

Renesas Electronics America Inc

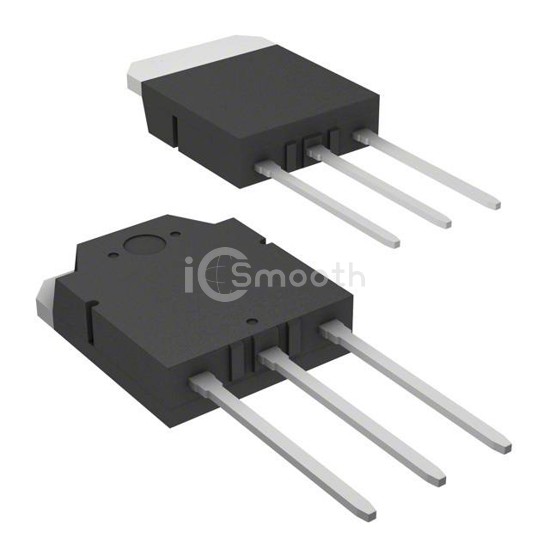

IGBT 1200V 50A 245W TO-3P

RJH1CV5DPK-00#T0 is a Transistors - IGBTs - Single manufactured by Renesas Electronics America Inc. IGBT 1200V 50A 245W TO-3P. Key specifications: mounting type Through Hole, operating temperature 150°C (TJ), package / case TO-220-3 Full Pack, current - collector (ic) (max) 50 A.

Datasheet Request a Quote

In Stock: 3,330

Specifications

17 parameters

Product Status	Obsolete
IGBT Type	Trench
Voltage - Collector Emitter Breakdown (Max)	1200 V
Current - Collector (Ic) (Max)	50 A
Current - Collector Pulsed (Icm)	-
Vce(on) (Max) @ Vge, Ic	2.6V @ 15V, 25A
Power - Max	245 W
Switching Energy	1.9mJ (on), 1.5mJ (off)
Input Type	Standard

Gate Charge	72 nC
Td (on/off) @ 25°C	42ns/105ns
Test Condition	600V, 25A, 5Ohm, 15V
Reverse Recovery Time (trr)	170 ns
Operating Temperature	150°C (TJ)
Mounting Type	Through Hole
Package / Case	TO-220-3 Full Pack
Supplier Device Package	TO-3P
