Name: R5F566NNHDBG#20
Brand: Renesas Electronics America Inc
SKU: R5F566NNHDBG#20
Price: 17.51 USD
Availability: InStock

REF: R5F566NNHDBG#20 Renesas Electronics America Inc

R5F566NNHDBG#20

Renesas Electronics America Inc

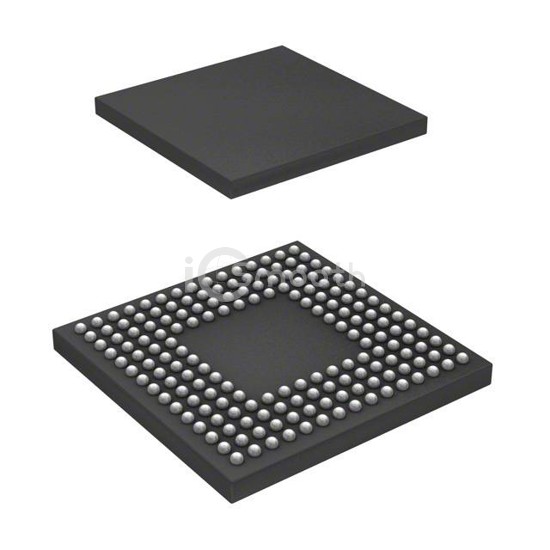

IC MCU 32BIT 4MB FLASH 176LFBGA

R5F566NNHDBG#20 is a Embedded - Microcontrollers manufactured by Renesas Electronics America Inc. IC MCU 32BIT 4MB FLASH 176LFBGA. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply (vcc/vdd) 2.7V ~ 3.6V, package / case 176-LFBGA.

Datasheet Request a Quote

In Stock: 4,241

Tiered Pricing USD

1+ $17.5100 —

10+ $13.9120 -21%

25+ $13.0140 -26%

152+ $11.7968 -33%

304+ $11.4706 -34%

608+ $11.2022 -36% BEST

Specifications

18 parameters

Product Status	Active
Core Processor	RXv3
Core Size	32-Bit Single-Core
Speed	120MHz
Connectivity	CANbus, EBI/EMI, Ethernet, I²C, MMC/SD, QSPI, SCI, SPI, SSI, USB OTG
Peripherals	DMA, LCD, LVD, POR, PWM, WDT
Number of I/O	136
Program Memory Size	4MB (4M x 8)
Program Memory Type	FLASH

EEPROM Size	32K x 8
RAM Size	1M x 8
Voltage - Supply (Vcc/Vdd)	2.7V ~ 3.6V
Data Converters	A/D 29x12b; D/A 2x12b
Oscillator Type	Internal
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	176-LFBGA
Supplier Device Package	176-LFBGA (13x13)
