Name: R5F566NNDDBD#20
Brand: Renesas Electronics America Inc
SKU: R5F566NNDDBD#20
Price: 14.88 USD
Availability: InStock

REF: R5F566NNDDBD#20 Renesas Electronics America Inc

R5F566NNDDBD#20

Renesas Electronics America Inc

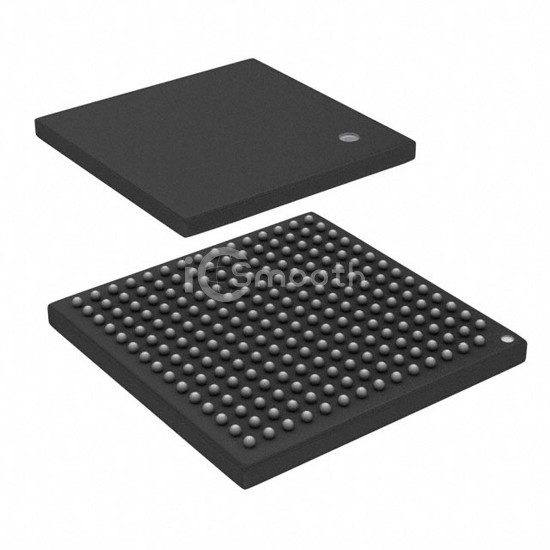

IC MCU 32BIT 4MB FLASH 224LFBGA

R5F566NNDDBD#20 is a Embedded - Microcontrollers manufactured by Renesas Electronics America Inc. IC MCU 32BIT 4MB FLASH 224LFBGA. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply (vcc/vdd) 2.7V ~ 3.6V, package / case 224-LFBGA.

Datasheet Request a Quote

In Stock: 7,351

Tiered Pricing USD

1+ $14.8800 —

10+ $11.7650 -21%

25+ $10.9864 -26%

160+ $9.9074 -33%

320+ $9.6286 -35%

640+ $9.3991 -37% BEST

Specifications

18 parameters

Product Status	Active
Core Processor	RXv3
Core Size	32-Bit Single-Core
Speed	120MHz
Connectivity	CANbus, EBI/EMI, Ethernet, I²C, MMC/SD, QSPI, SCI, SPI, SSI, USB OTG
Peripherals	DMA, LCD, LVD, POR, PWM, WDT
Number of I/O	182
Program Memory Size	4MB (4M x 8)
Program Memory Type	FLASH

EEPROM Size	32K x 8
RAM Size	1M x 8
Voltage - Supply (Vcc/Vdd)	2.7V ~ 3.6V
Data Converters	A/D 8x12b, 21x12b; D/A 2x12b
Oscillator Type	Internal
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	224-LFBGA
Supplier Device Package	224-LFBGA (13x13)
