Name: PS9531L1-V-AX
Brand: Renesas Electronics America Inc
SKU: PS9531L1-V-AX
Price: 3.85 USD
Availability: InStock

REF: PS9531L1-V-AX Renesas Electronics America Inc

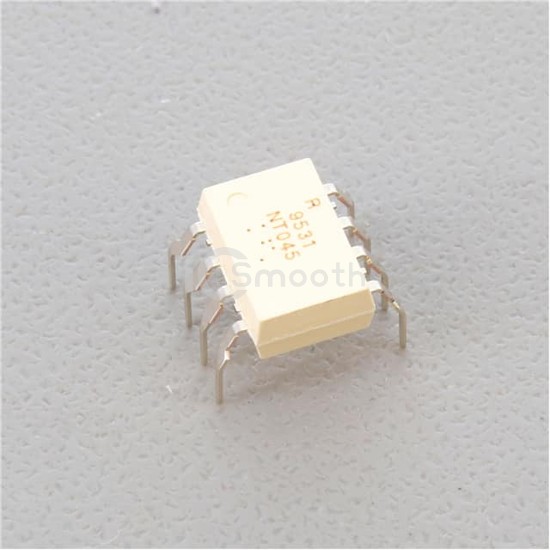

PS9531L1-V-AX

Renesas Electronics America Inc

OPTOISO 5KV 1CH GATE DRIVER 8DIP

PS9531L1-V-AX is a Isolators - Gate Drivers manufactured by Renesas Electronics America Inc. OPTOISO 5KV 1CH GATE DRIVER 8DIP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 125°C, voltage - forward (vf) (typ) 1.56V, package / case 8-DIP (0.400", 10.16mm).

Datasheet Request a Quote

In Stock: 9,125

Tiered Pricing USD

1+ $3.8500 —

50+ $2.3782 -38%

100+ $2.2296 -42%

500+ $1.9654 -49%

1,000+ $1.8795 -51%

2,000+ $1.8068 -53%

5,000+ $1.7276 -55% BEST

Specifications

18 parameters

Product Status	Active
Technology	Optical Coupling
Number of Channels	1
Voltage - Isolation	5000Vrms
Common Mode Transient Immunity (Min)	50kV/µs
Propagation Delay tpLH / tpHL (Max)	175ns, 175ns
Pulse Width Distortion (Max)	75ns
Rise / Fall Time (Typ)	40ns, 40ns
Current - Output High, Low	2A, 2A

Current - Peak Output	2.5A
Voltage - Forward (Vf) (Typ)	1.56V
Current - DC Forward (If) (Max)	25 mA
Voltage - Output Supply	15V ~ 30V
Operating Temperature	-40°C ~ 125°C
Mounting Type	Through Hole
Package / Case	8-DIP (0.400", 10.16mm)
Supplier Device Package	8-DIP
Approval Agency	CSA, SEMKO, UL, VDE
