Name: PS9506-V-AX
Brand: Renesas Electronics America Inc
SKU: PS9506-V-AX
Price: 3.65 USD
Availability: InStock

REF: PS9506-V-AX Renesas Electronics America Inc

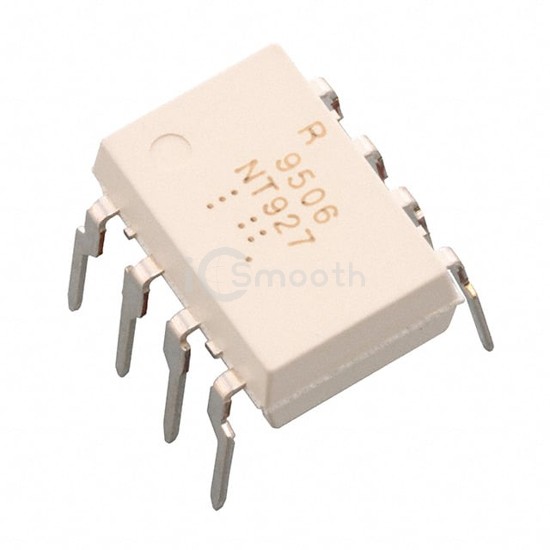

PS9506-V-AX

Renesas Electronics America Inc

HI-SPD OPTOCPLR 8-PIN DIP

PS9506-V-AX is a Isolators - Gate Drivers manufactured by Renesas Electronics America Inc. HI-SPD OPTOCPLR 8-PIN DIP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 110°C, voltage - forward (vf) (typ) 1.56V, package / case 8-DIP (0.300", 7.62mm).

Datasheet Request a Quote

In Stock: 909

Tiered Pricing USD

1+ $3.6500 —

50+ $2.2446 -39%

100+ $2.1027 -42%

500+ $1.8504 -49%

1,000+ $1.7683 -52%

2,000+ $1.6989 -53%

5,000+ $1.6232 -56% BEST

Specifications

18 parameters

Product Status	Active
Technology	Optical Coupling
Number of Channels	1
Voltage - Isolation	5000Vrms
Common Mode Transient Immunity (Min)	25kV/µs
Propagation Delay tpLH / tpHL (Max)	400ns, 400ns
Pulse Width Distortion (Max)	250ns
Rise / Fall Time (Typ)	50ns, 50ns
Current - Output High, Low	400mA, 400mA

Current - Peak Output	600mA
Voltage - Forward (Vf) (Typ)	1.56V
Current - DC Forward (If) (Max)	25 mA
Voltage - Output Supply	10V ~ 30V
Operating Temperature	-40°C ~ 110°C
Mounting Type	Through Hole
Package / Case	8-DIP (0.300", 7.62mm)
Supplier Device Package	8-DIP
Approval Agency	CSA, SEMKO, UL, VDE
