PS9308L-E3-AX

In Stock: 2,177
PS9308L-E3-AX - Renesas Electronics America Inc - Isolators - Gate Drivers
REF: PS9308L-E3-AX Renesas Electronics America Inc
PS9308L-E3-AX

Renesas Electronics America Inc

OPTOISO 5KV 1CH GATE DRVR 6SDIP

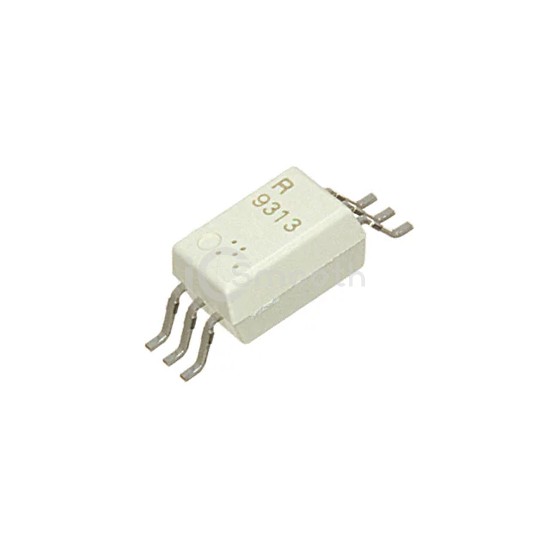

PS9308L-E3-AX is a Isolators - Gate Drivers manufactured by Renesas Electronics America Inc. OPTOISO 5KV 1CH GATE DRVR 6SDIP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 110°C, voltage - forward (vf) (typ) 1.56V, package / case 6-SOIC (0.268", 6.80mm Width).

Datasheet Request a Quote

In Stock: 2,177

Specifications

18 parameters
Product StatusNot For New Designs
TechnologyOptical Coupling
Number of Channels1
Voltage - Isolation5000Vrms
Common Mode Transient Immunity (Min)25kV/µs
Propagation Delay tpLH / tpHL (Max)250ns, 250ns
Pulse Width Distortion (Max)100ns
Rise / Fall Time (Typ)50ns, 50ns
Current - Output High, Low1.5A, 1.5A
Current - Peak Output2A
Voltage - Forward (Vf) (Typ)1.56V
Current - DC Forward (If) (Max)25 mA
Voltage - Output Supply15V ~ 30V
Operating Temperature-40°C ~ 110°C
Mounting TypeSurface Mount
Package / Case6-SOIC (0.268", 6.80mm Width)
Supplier Device Package6-SDIP
Approval AgencyCSA, SEMKO, UL
