Name: PS8502L1-AX
Brand: Renesas Electronics America Inc
SKU: PS8502L1-AX
Price: 3.25 USD
Availability: InStock

REF: PS8502L1-AX Renesas Electronics America Inc

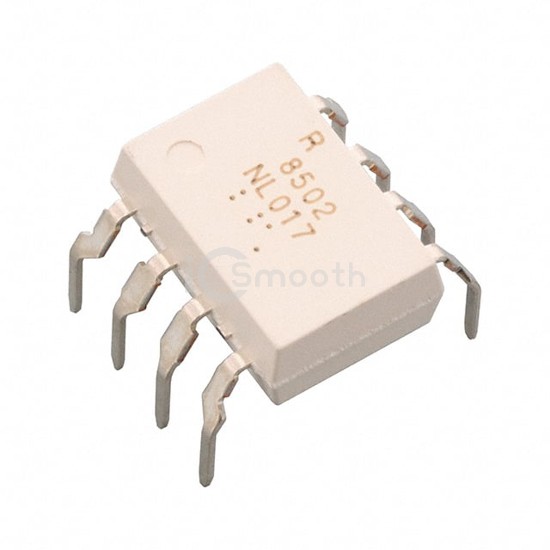

PS8502L1-AX

Renesas Electronics America Inc

HI-SPD OPTOCPLR 8-PIN DIP

PS8502L1-AX is a Optoisolators - Transistor, Photovoltaic Output manufactured by Renesas Electronics America Inc. HI-SPD OPTOCPLR 8-PIN DIP. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 100°C, voltage - forward (vf) (typ) 1.7V, package / case 8-DIP (0.400", 10.16mm).

Datasheet Request a Quote

In Stock: 8,983

Tiered Pricing USD

1+ $3.2500 —

50+ $2.0074 -38%

100+ $1.8817 -42%

500+ $1.6584 -49%

1,000+ $1.5858 -51%

2,000+ $1.5500 -52% BEST

Specifications

18 parameters

Product Status	Active
Number of Channels	1
Voltage - Isolation	5000Vrms
Current Transfer Ratio (Min)	15% @ 16mA
Current Transfer Ratio (Max)	-
Turn On / Turn Off Time (Typ)	-
Rise / Fall Time (Typ)	-
Input Type	DC
Output Type	Transistor with Base

Voltage - Output (Max)	35V
Current - Output / Channel	8mA
Voltage - Forward (Vf) (Typ)	1.7V
Current - DC Forward (If) (Max)	25 mA
Vce Saturation (Max)	-
Operating Temperature	-55°C ~ 100°C
Mounting Type	Through Hole
Package / Case	8-DIP (0.400", 10.16mm)
Supplier Device Package	8-DIP
