Name: PS8501-AX
Brand: Renesas Electronics America Inc
SKU: PS8501-AX
Price: 3.37 USD
Availability: InStock

REF: PS8501-AX Renesas Electronics America Inc

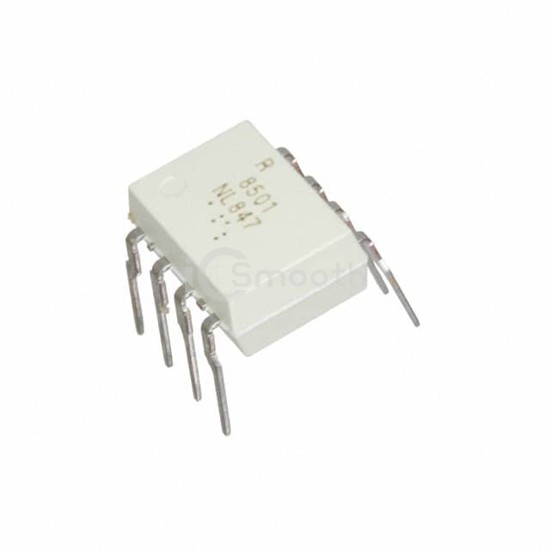

PS8501-AX

Renesas Electronics America Inc

OPTOISO 5KV TRANS W/BASE 8DIP

PS8501-AX is a Optoisolators - Transistor, Photovoltaic Output manufactured by Renesas Electronics America Inc. OPTOISO 5KV TRANS W/BASE 8DIP. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 100°C, voltage - forward (vf) (typ) 1.7V, package / case 8-DIP (0.300", 7.62mm).

Datasheet Request a Quote

In Stock: 9,163

Tiered Pricing USD

1+ $3.3700 —

50+ $2.0594 -39%

100+ $1.9269 -43%

500+ $1.6914 -50%

1,000+ $1.6147 -52%

2,000+ $1.5498 -54%

5,000+ $1.4792 -56% BEST

Specifications

18 parameters

Product Status	Active
Number of Channels	1
Voltage - Isolation	5000Vrms
Current Transfer Ratio (Min)	15% @ 16mA
Current Transfer Ratio (Max)	-
Turn On / Turn Off Time (Typ)	220ns, 350ns
Rise / Fall Time (Typ)	-
Input Type	DC
Output Type	Transistor with Base

Voltage - Output (Max)	35V
Current - Output / Channel	8mA
Voltage - Forward (Vf) (Typ)	1.7V
Current - DC Forward (If) (Max)	25 mA
Vce Saturation (Max)	-
Operating Temperature	-55°C ~ 100°C
Mounting Type	Through Hole
Package / Case	8-DIP (0.300", 7.62mm)
Supplier Device Package	-
