Name: PS2806-4-A
Brand: Renesas Electronics America Inc
SKU: PS2806-4-A
Price: 7.10 USD
Availability: InStock

REF: PS2806-4-A Renesas Electronics America Inc

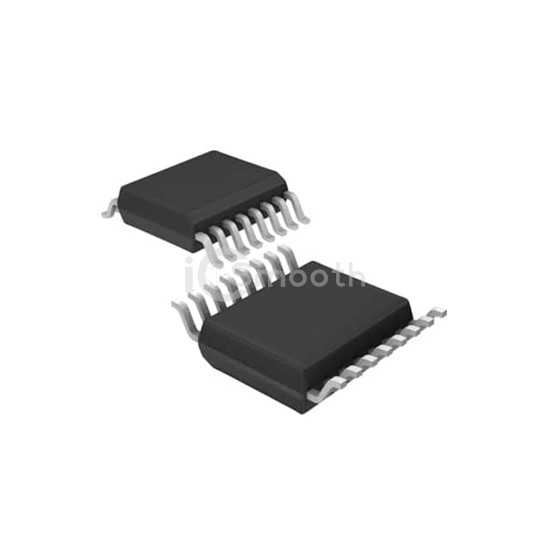

PS2806-4-A

Renesas Electronics America Inc

OPTOISOLTR 2.5KV 4CH DARL 16SOIC

PS2806-4-A is a Optoisolators - Transistor, Photovoltaic Output manufactured by Renesas Electronics America Inc. OPTOISOLTR 2.5KV 4CH DARL 16SOIC. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 100°C, voltage - forward (vf) (typ) 1.1V, package / case 16-SOIC (0.173", 4.40mm Width).

Datasheet Request a Quote

In Stock: 2,620

Tiered Pricing USD

1+ $7.1000 —

10+ $5.3700 -24%

100+ $4.3521 -39%

500+ $3.9082 -45%

1,000+ $3.7641 -47%

2,000+ $3.6422 -49% BEST

Specifications

18 parameters

Product Status	Not For New Designs
Number of Channels	4
Voltage - Isolation	2500Vrms
Current Transfer Ratio (Min)	200% @ 1mA
Current Transfer Ratio (Max)	-
Turn On / Turn Off Time (Typ)	-
Rise / Fall Time (Typ)	200µs, 200µs
Input Type	AC, DC
Output Type	Darlington

Voltage - Output (Max)	40V
Current - Output / Channel	100mA
Voltage - Forward (Vf) (Typ)	1.1V
Current - DC Forward (If) (Max)	50 mA
Vce Saturation (Max)	1V
Operating Temperature	-55°C ~ 100°C
Mounting Type	Surface Mount
Package / Case	16-SOIC (0.173", 4.40mm Width)
Supplier Device Package	16-SOP
