Name: PS2561FL-1Y-A
Brand: Renesas Electronics America Inc
SKU: PS2561FL-1Y-A
Price: 1.03 USD
Availability: InStock

REF: PS2561FL-1Y-A Renesas Electronics America Inc

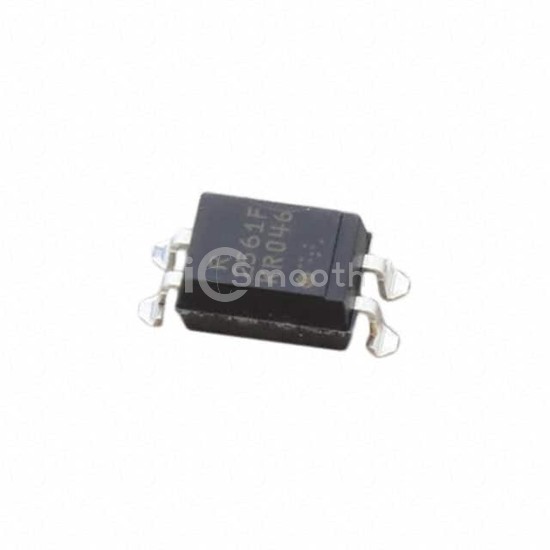

PS2561FL-1Y-A

Renesas Electronics America Inc

OPTOCOUPLER 4-PIN DIP

PS2561FL-1Y-A is a Optoisolators - Transistor, Photovoltaic Output manufactured by Renesas Electronics America Inc. OPTOCOUPLER 4-PIN DIP. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 110°C, voltage - forward (vf) (typ) 1.2V, package / case 4-SMD, Gull Wing.

Datasheet Request a Quote

In Stock: 2,073

Tiered Pricing USD

1+ $1.0300 —

10+ $0.7190 -30%

100+ $0.5316 -48%

500+ $0.4482 -56%

1,000+ $0.4210 -59%

2,000+ $0.3978 -61%

5,000+ $0.3725 -64%

10,000+ $0.3568 -65%

25,000+ $0.3396 -67% BEST

Specifications

18 parameters

Product Status	Active
Number of Channels	1
Voltage - Isolation	5000Vrms
Current Transfer Ratio (Min)	300% @ 5mA
Current Transfer Ratio (Max)	600% @ 5mA
Turn On / Turn Off Time (Typ)	-
Rise / Fall Time (Typ)	5µs, 7µs
Input Type	DC
Output Type	Transistor with Base

Voltage - Output (Max)	80V
Current - Output / Channel	50mA
Voltage - Forward (Vf) (Typ)	1.2V
Current - DC Forward (If) (Max)	30 mA
Vce Saturation (Max)	300mV
Operating Temperature	-55°C ~ 110°C
Mounting Type	Surface Mount
Package / Case	4-SMD, Gull Wing
Supplier Device Package	4-SMD
