Name: PS2561DL2-1Y-V-A
Brand: Renesas Electronics America Inc
SKU: PS2561DL2-1Y-V-A
Price: 0.96 USD
Availability: InStock

REF: PS2561DL2-1Y-V-A Renesas Electronics America Inc

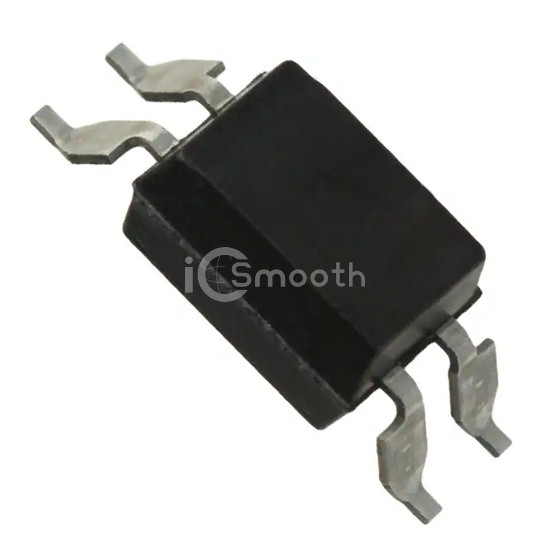

PS2561DL2-1Y-V-A

Renesas Electronics America Inc

OPTOISOLATOR 5KV TRANS 4SMD

PS2561DL2-1Y-V-A is a Optoisolators - Transistor, Photovoltaic Output manufactured by Renesas Electronics America Inc. OPTOISOLATOR 5KV TRANS 4SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 110°C, voltage - forward (vf) (typ) 1.2V, package / case 4-SMD, Gull Wing.

Datasheet Request a Quote

In Stock: 3,851

Tiered Pricing USD

1+ $0.9600 —

10+ $0.6700 -30%

100+ $0.4937 -49%

500+ $0.4153 -57%

1,000+ $0.3896 -59%

2,000+ $0.3678 -62%

5,000+ $0.3440 -64%

10,000+ $0.3292 -66%

25,000+ $0.3130 -67% BEST

Specifications

18 parameters

Product Status	Active
Number of Channels	1
Voltage - Isolation	5000Vrms
Current Transfer Ratio (Min)	50% @ 5mA
Current Transfer Ratio (Max)	400% @ 5mA
Turn On / Turn Off Time (Typ)	-
Rise / Fall Time (Typ)	3µs, 5µs
Input Type	DC
Output Type	Transistor

Voltage - Output (Max)	80V
Current - Output / Channel	50mA
Voltage - Forward (Vf) (Typ)	1.2V
Current - DC Forward (If) (Max)	40 mA
Vce Saturation (Max)	300mV
Operating Temperature	-55°C ~ 110°C
Mounting Type	Surface Mount
Package / Case	4-SMD, Gull Wing
Supplier Device Package	4-SMD
