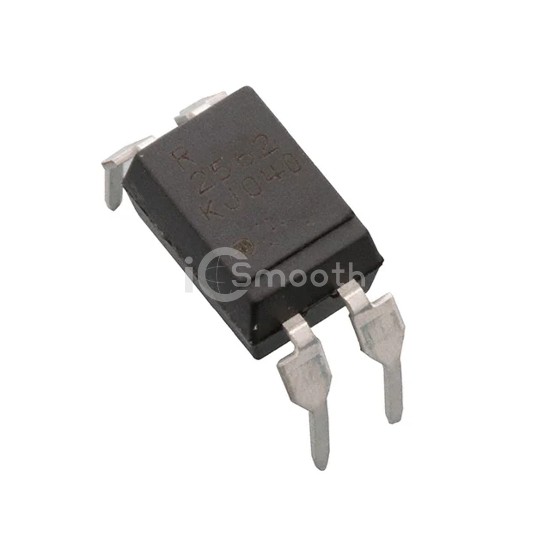

Name: PS2561AL1-1-L-A
Brand: Renesas Electronics America Inc
SKU: PS2561AL1-1-L-A
Price: 0.51 USD
Availability: InStock

REF: PS2561AL1-1-L-A Renesas Electronics America Inc

PS2561AL1-1-L-A

Renesas Electronics America Inc

OPTOISOLATOR 5KV TRANS 4DIP

PS2561AL1-1-L-A is a Optoisolators - Transistor, Photovoltaic Output manufactured by Renesas Electronics America Inc. OPTOISOLATOR 5KV TRANS 4DIP. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 100°C, voltage - forward (vf) (typ) 1.2V, package / case 4-DIP (0.400", 10.16mm).

Datasheet Request a Quote

In Stock: 4,197

Tiered Pricing USD

1+ $0.5100 —

10+ $0.3540 -31%

100+ $0.2544 -50%

500+ $0.2095 -59%

1,000+ $0.1947 -62% BEST

Specifications

18 parameters

Product Status	Active
Number of Channels	1
Voltage - Isolation	5000Vrms
Current Transfer Ratio (Min)	200% @ 5mA
Current Transfer Ratio (Max)	400% @ 5mA
Turn On / Turn Off Time (Typ)	-
Rise / Fall Time (Typ)	3µs, 5µs
Input Type	DC
Output Type	Transistor

Voltage - Output (Max)	70V
Current - Output / Channel	30mA
Voltage - Forward (Vf) (Typ)	1.2V
Current - DC Forward (If) (Max)	30 mA
Vce Saturation (Max)	300mV
Operating Temperature	-55°C ~ 100°C
Mounting Type	Through Hole
Package / Case	4-DIP (0.400", 10.16mm)
Supplier Device Package	4-DIP
