Name: PS2514-1Y-V-A
Brand: Renesas Electronics America Inc
SKU: PS2514-1Y-V-A
Price: 1.09 USD
Availability: InStock

REF: PS2514-1Y-V-A Renesas Electronics America Inc

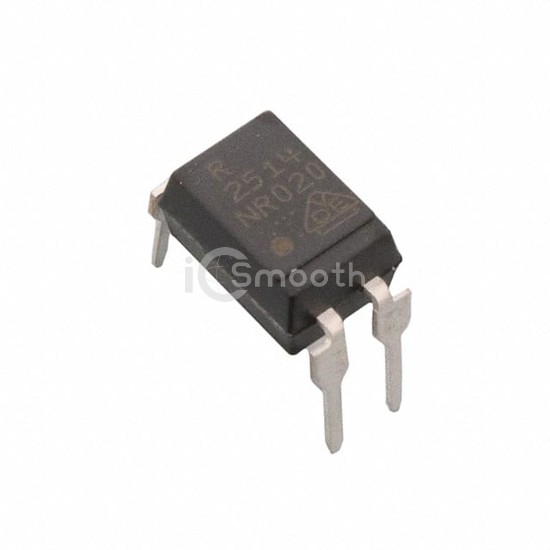

PS2514-1Y-V-A

Renesas Electronics America Inc

OPTOCOUPLER 4-PIN DIP

PS2514-1Y-V-A is a Optoisolators - Transistor, Photovoltaic Output manufactured by Renesas Electronics America Inc. OPTOCOUPLER 4-PIN DIP. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 100°C, voltage - forward (vf) (typ) 1.1V, package / case 4-DIP (0.300", 7.62mm).

Datasheet Request a Quote

In Stock: 4,099

Tiered Pricing USD

1+ $1.0900 —

10+ $0.7670 -30%

100+ $0.5691 -48%

500+ $0.4809 -56%

1,000+ $0.4521 -59%

2,000+ $0.4276 -61%

5,000+ $0.4009 -63%

10,000+ $0.3842 -65%

25,000+ $0.3661 -66% BEST

Specifications

18 parameters

Product Status	Active
Number of Channels	1
Voltage - Isolation	5000Vrms
Current Transfer Ratio (Min)	50% @ 5mA
Current Transfer Ratio (Max)	200% @ 5mA
Turn On / Turn Off Time (Typ)	15µs, 15µs
Rise / Fall Time (Typ)	-
Input Type	DC
Output Type	Transistor

Voltage - Output (Max)	40V
Current - Output / Channel	20mA
Voltage - Forward (Vf) (Typ)	1.1V
Current - DC Forward (If) (Max)	30 mA
Vce Saturation (Max)	350mV
Operating Temperature	-55°C ~ 100°C
Mounting Type	Through Hole
Package / Case	4-DIP (0.300", 7.62mm)
Supplier Device Package	4-DIP
