PS2505-4-A

In Stock: 11,893

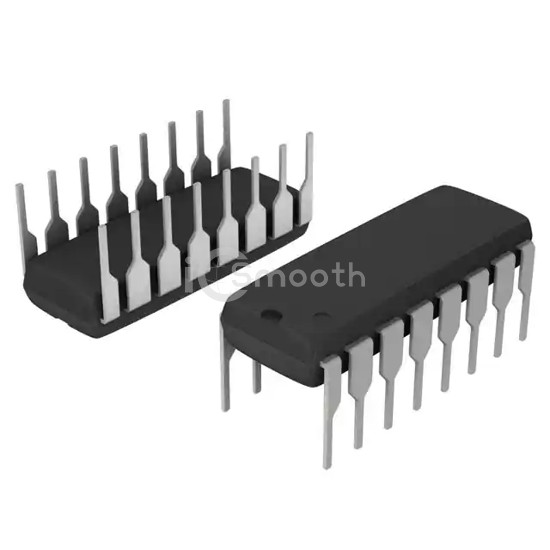

PS2505-4-A - Renesas Electronics America Inc - Optoisolators - Transistor, Photovoltaic Output
REF: PS2505-4-A Renesas Electronics America Inc
PS2505-4-A

Renesas Electronics America Inc

OPTOISOLATOR 5KV 4CH TRANS 16DIP

PS2505-4-A is a Optoisolators - Transistor, Photovoltaic Output manufactured by Renesas Electronics America Inc. OPTOISOLATOR 5KV 4CH TRANS 16DIP. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 100°C, voltage - forward (vf) (typ) 1.17V, package / case 16-DIP (0.300", 7.62mm).

Datasheet Request a Quote

In Stock: 11,893

Tiered Pricing USD
1+ $2.7100 —
20+ $1.8055 -33%
100+ $1.5206 -44%
500+ $1.3254 -51%
1,000+ $1.2618 -53%
2,000+ $1.2079 -55%
5,000+ $1.1492 -58% BEST

Specifications

18 parameters
Product StatusNot For New Designs
Number of Channels4
Voltage - Isolation5000Vrms
Current Transfer Ratio (Min)80% @ 5mA
Current Transfer Ratio (Max)600% @ 5mA
Turn On / Turn Off Time (Typ)-
Rise / Fall Time (Typ)3µs, 5µs
Input TypeAC, DC
Output TypeTransistor
Voltage - Output (Max)80V
Current - Output / Channel50mA
Voltage - Forward (Vf) (Typ)1.17V
Current - DC Forward (If) (Max)80 mA
Vce Saturation (Max)300mV
Operating Temperature-55°C ~ 100°C
Mounting TypeThrough Hole
Package / Case16-DIP (0.300", 7.62mm)
Supplier Device Package16-DIP
