PS2505-1-A

In Stock: 10,662

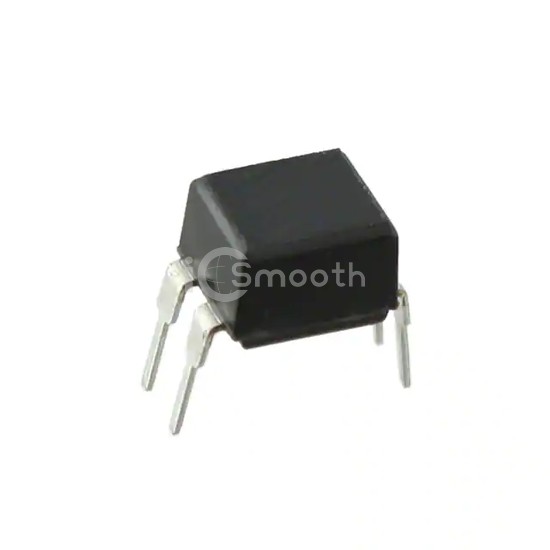

PS2505-1-A - Renesas Electronics America Inc - Optoisolators - Transistor, Photovoltaic Output
REF: PS2505-1-A Renesas Electronics America Inc
PS2505-1-A

Renesas Electronics America Inc

OPTOISOLATOR 5KV TRANS 4DIP

PS2505-1-A is a Optoisolators - Transistor, Photovoltaic Output manufactured by Renesas Electronics America Inc. OPTOISOLATOR 5KV TRANS 4DIP. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 100°C, voltage - forward (vf) (typ) 1.17V, package / case 4-DIP (0.300", 7.62mm).

Datasheet Request a Quote

In Stock: 10,662

Tiered Pricing USD
1+ $0.8500 —
10+ $0.5940 -30%
100+ $0.4360 -49%
500+ $0.3653 -57%
1,000+ $0.3421 -60%
2,000+ $0.3225 -62%
5,000+ $0.3010 -65%
10,000+ $0.2876 -66%
25,000+ $0.2730 -68% BEST

Specifications

18 parameters
Product StatusNot For New Designs
Number of Channels1
Voltage - Isolation5000Vrms
Current Transfer Ratio (Min)80% @ 5mA
Current Transfer Ratio (Max)600% @ 5mA
Turn On / Turn Off Time (Typ)-
Rise / Fall Time (Typ)3µs, 5µs
Input TypeAC, DC
Output TypeTransistor
Voltage - Output (Max)80V
Current - Output / Channel50mA
Voltage - Forward (Vf) (Typ)1.17V
Current - DC Forward (If) (Max)80 mA
Vce Saturation (Max)300mV
Operating Temperature-55°C ~ 100°C
Mounting TypeThrough Hole
Package / Case4-DIP (0.300", 7.62mm)
Supplier Device Package4-DIP
