PS2503L-1-F3-A

In Stock: 6,399

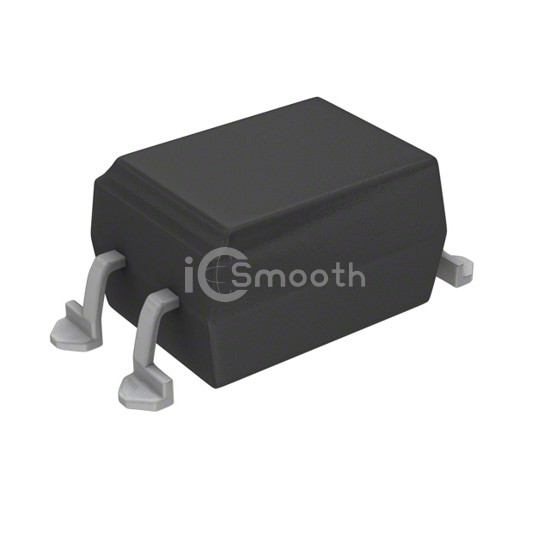

PS2503L-1-F3-A - Renesas Electronics America Inc - Optoisolators - Transistor, Photovoltaic Output
REF: PS2503L-1-F3-A Renesas Electronics America Inc
PS2503L-1-F3-A

Renesas Electronics America Inc

OPTOISOLATOR 5KV TRANS 4SMD

PS2503L-1-F3-A is a Optoisolators - Transistor, Photovoltaic Output manufactured by Renesas Electronics America Inc. OPTOISOLATOR 5KV TRANS 4SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 100°C, voltage - forward (vf) (typ) 1.1V, package / case 4-SMD, Gull Wing.

Datasheet Request a Quote

In Stock: 6,399

Tiered Pricing USD
1+ $1.2600 —
10+ $0.8860 -30%
100+ $0.6614 -48%
500+ $0.5616 -55%
1,000+ $0.5290 -58% BEST

Specifications

18 parameters
Product StatusNot For New Designs
Number of Channels1
Voltage - Isolation5000Vrms
Current Transfer Ratio (Min)100% @ 1mA
Current Transfer Ratio (Max)400% @ 1mA
Turn On / Turn Off Time (Typ)-
Rise / Fall Time (Typ)20µs, 30µs
Input TypeDC
Output TypeTransistor
Voltage - Output (Max)40V
Current - Output / Channel30mA
Voltage - Forward (Vf) (Typ)1.1V
Current - DC Forward (If) (Max)80 mA
Vce Saturation (Max)250mV
Operating Temperature-55°C ~ 100°C
Mounting TypeSurface Mount
Package / Case4-SMD, Gull Wing
Supplier Device Package4-SMD
