Name: PS2502-4-A
Brand: Renesas Electronics America Inc
SKU: PS2502-4-A
Price: 3.44 USD
Availability: InStock

REF: PS2502-4-A Renesas Electronics America Inc

PS2502-4-A

Renesas Electronics America Inc

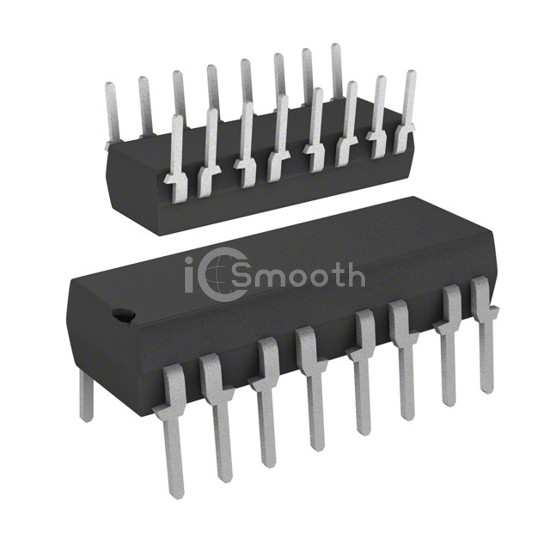

OPTOISO 5KV 4CH DARLINGTON 16DIP

PS2502-4-A is a Optoisolators - Transistor, Photovoltaic Output manufactured by Renesas Electronics America Inc. OPTOISO 5KV 4CH DARLINGTON 16DIP. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 100°C, voltage - forward (vf) (typ) 1.17V, package / case 16-DIP (0.300", 7.62mm).

Datasheet Request a Quote

In Stock: 4,630

Tiered Pricing USD

1+ $3.4400 —

20+ $2.3260 -32%

100+ $1.9750 -43%

500+ $1.7349 -50%

1,000+ $1.6567 -52%

2,000+ $1.5906 -54%

5,000+ $1.5185 -56% BEST

Specifications

18 parameters

Product Status	Not For New Designs
Number of Channels	4
Voltage - Isolation	5000Vrms
Current Transfer Ratio (Min)	200% @ 1mA
Current Transfer Ratio (Max)	-
Turn On / Turn Off Time (Typ)	-
Rise / Fall Time (Typ)	100µs, 100µs
Input Type	DC
Output Type	Darlington

Voltage - Output (Max)	40V
Current - Output / Channel	160mA
Voltage - Forward (Vf) (Typ)	1.17V
Current - DC Forward (If) (Max)	80 mA
Vce Saturation (Max)	1V
Operating Temperature	-55°C ~ 100°C
Mounting Type	Through Hole
Package / Case	16-DIP (0.300", 7.62mm)
Supplier Device Package	16-DIP
