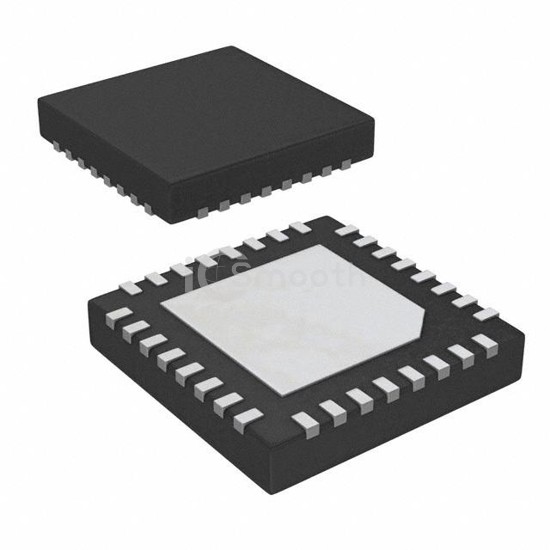

Name: ISL81401AFRZ
Brand: Renesas Electronics America Inc
SKU: ISL81401AFRZ
Price: 5.81 USD
Availability: InStock

REF: ISL81401AFRZ Renesas Electronics America Inc

ISL81401AFRZ

Renesas Electronics America Inc

40V 4-SW SYNCH BUCK-BOOST PWM

ISL81401AFRZ is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by Renesas Electronics America Inc. 40V 4-SW SYNCH BUCK-BOOST PWM. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), voltage - supply (vcc/vdd) 4.5V ~ 40V, package / case 32-VFQFN Exposed Pad.

Datasheet Request a Quote

In Stock: 5,181

Tiered Pricing USD

1+ $5.8100 —

10+ $4.4520 -23%

25+ $4.1116 -29%

100+ $3.7376 -36%

250+ $3.5593 -39%

600+ $3.4269 -41%

1,200+ $3.3428 -42%

3,000+ $3.2542 -44% BEST

Specifications

18 parameters

Product Status	Active
Output Type	PWM Signal
Function	Step-Up/Step-Down
Output Configuration	Positive
Topology	Buck-Boost
Number of Outputs	1
Output Phases	2
Voltage - Supply (Vcc/Vdd)	4.5V ~ 40V
Frequency - Switching	90kHz ~ 650kHz

Duty Cycle (Max)	-
Synchronous Rectifier	Yes
Clock Sync	Yes
Serial Interfaces	-
Control Features	Current Limit, Enable, Power Good
Operating Temperature	-40°C ~ 125°C (TA)
Mounting Type	Surface Mount
Package / Case	32-VFQFN Exposed Pad
Supplier Device Package	32-QFN (5x5)
