ISL80505IRAJZ-T7A

In Stock: 9,423

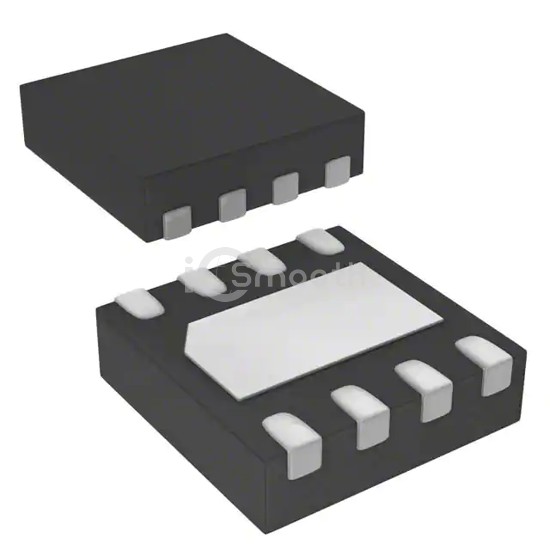

ISL80505IRAJZ-T7A - Renesas Electronics America Inc - PMIC - Voltage Regulators - Linear
REF: ISL80505IRAJZ-T7A Renesas Electronics America Inc
ISL80505IRAJZ-T7A

Renesas Electronics America Inc

IC REG LINEAR POS ADJ 500MA 8DFN

ISL80505IRAJZ-T7A is a PMIC - Voltage Regulators - Linear manufactured by Renesas Electronics America Inc. IC REG LINEAR POS ADJ 500MA 8DFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 8-VDFN Exposed Pad, current - supply (max) 5.7 mA.

Datasheet Request a Quote

In Stock: 9,423

Specifications

18 parameters
Product StatusActive
Output ConfigurationPositive
Output TypeAdjustable
Number of Regulators1
Voltage - Input (Max)6V
Voltage - Output (Min/Fixed)0.8V
Voltage - Output (Max)5.5V
Voltage Dropout (Max)0.09V @ 500mA
Current - Output500mA
Current - Quiescent (Iq)4.6 mA
Current - Supply (Max)5.7 mA
PSRR60dB ~ 57dB (120Hz ~ 1kHz)
Control FeaturesEnable, Soft Start
Protection FeaturesOver Current, Over Temperature
Operating Temperature-40°C ~ 125°C
Mounting TypeSurface Mount
Package / Case8-VDFN Exposed Pad
Supplier Device Package8-DFN (3x3)
