Name: ISL80505IRAJZ
Brand: Renesas Electronics America Inc
SKU: ISL80505IRAJZ
Price: 1.06 USD
Availability: InStock

REF: ISL80505IRAJZ Renesas Electronics America Inc

ISL80505IRAJZ

Renesas Electronics America Inc

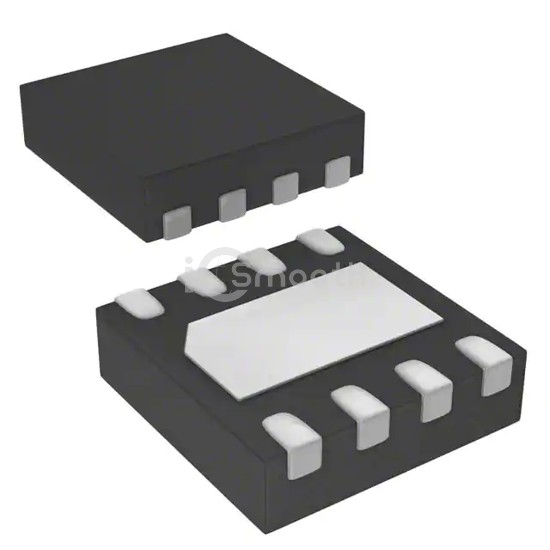

IC REG LINEAR POS ADJ 500MA 8DFN

ISL80505IRAJZ is a PMIC - Voltage Regulators - Linear manufactured by Renesas Electronics America Inc. IC REG LINEAR POS ADJ 500MA 8DFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 8-VDFN Exposed Pad, current - supply (max) 5.7 mA.

Datasheet Request a Quote

In Stock: 9,353

Tiered Pricing USD

1+ $1.0600 —

10+ $0.7670 -28%

25+ $0.6924 -35%

100+ $0.6108 -42%

490+ $0.5490 -48%

980+ $0.5295 -50%

1,470+ $0.5198 -51%

2,940+ $0.5055 -52%

5,390+ $0.4951 -53% BEST

Specifications

18 parameters

Product Status	Active
Output Configuration	Positive
Output Type	Adjustable
Number of Regulators	1
Voltage - Input (Max)	6V
Voltage - Output (Min/Fixed)	0.8V
Voltage - Output (Max)	5.5V
Voltage Dropout (Max)	0.09V @ 500mA
Current - Output	500mA

Current - Quiescent (Iq)	4.6 mA
Current - Supply (Max)	5.7 mA
PSRR	60dB ~ 57dB (120Hz ~ 1kHz)
Control Features	Enable, Soft Start
Protection Features	Over Current, Over Temperature
Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount
Package / Case	8-VDFN Exposed Pad
Supplier Device Package	8-DFN (3x3)
