ISL80138IVEAJZ-T7A

In Stock: 7,820

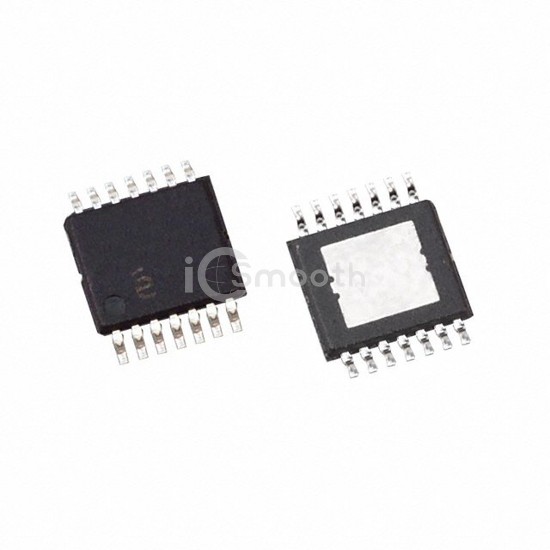

ISL80138IVEAJZ-T7A - Renesas Electronics America Inc - PMIC - Voltage Regulators - Linear
REF: ISL80138IVEAJZ-T7A Renesas Electronics America Inc
ISL80138IVEAJZ-T7A

Renesas Electronics America Inc

IC REG LIN POS ADJ 14HTSSOP

ISL80138IVEAJZ-T7A is a PMIC - Voltage Regulators - Linear manufactured by Renesas Electronics America Inc. IC REG LIN POS ADJ 14HTSSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 14-TSSOP (0.173", 4.40mm Width) Exposed Pad, current - supply (max) 125 µA.

Datasheet Request a Quote

In Stock: 7,820

Specifications

18 parameters
Product StatusActive
Output ConfigurationPositive
Output TypeAdjustable
Number of Regulators1
Voltage - Input (Max)40V
Voltage - Output (Min/Fixed)2.5V
Voltage - Output (Max)12V
Voltage Dropout (Max)0.507V @ 150mA
Current - Output150mA
Current - Quiescent (Iq)24 µA
Current - Supply (Max)125 µA
PSRR66dB (100Hz)
Control FeaturesEnable
Protection FeaturesOver Current, Over Temperature, Soft Start
Operating Temperature-40°C ~ 125°C
Mounting TypeSurface Mount
Package / Case14-TSSOP (0.173", 4.40mm Width) Exposed Pad
Supplier Device Package14-HTSSOP
