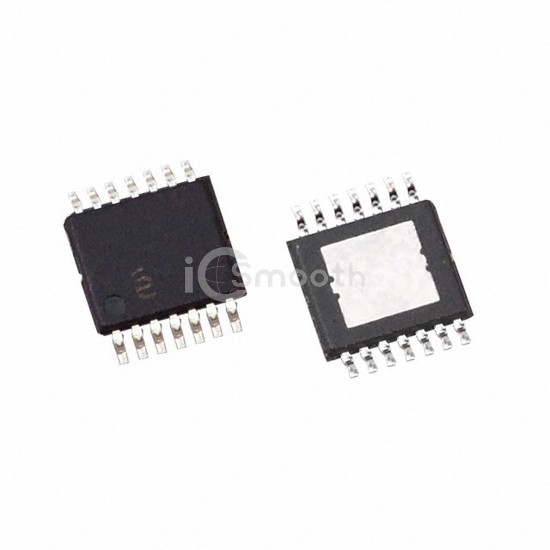

Name: ISL78434AVEZ-T7A
Brand: Renesas Electronics America Inc
SKU: ISL78434AVEZ-T7A
Price: 4.81 USD
Availability: InStock

REF: ISL78434AVEZ-T7A Renesas Electronics America Inc

ISL78434AVEZ-T7A

Renesas Electronics America Inc

IC GATE DRVR HALF-BRIDG 14HTSSOP

ISL78434AVEZ-T7A is a PMIC - Gate Drivers manufactured by Renesas Electronics America Inc. IC GATE DRVR HALF-BRIDG 14HTSSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 140°C (TJ), voltage - supply 8V ~ 18V, package / case 14-TSSOP (0.173", 4.40mm Width) Exposed Pad.

Datasheet Request a Quote

In Stock: 5,176

Tiered Pricing USD

1+ $4.8100 —

10+ $3.6580 -24%

25+ $3.3708 -30%

100+ $3.0548 -36% BEST

Specifications

15 parameters

Product Status	Active
Driven Configuration	Half-Bridge
Channel Type	Independent
Number of Drivers	2
Gate Type	N-Channel MOSFET
Voltage - Supply	8V ~ 18V
Logic Voltage - VIL, VIH	1V, 2.1V
Current - Peak Output (Source, Sink)	3A, 4A

Input Type	Inverting, Non-Inverting
High Side Voltage - Max (Bootstrap)	100 V
Rise / Fall Time (Typ)	10ns, 10ns
Operating Temperature	-40°C ~ 140°C (TJ)
Mounting Type	Surface Mount
Package / Case	14-TSSOP (0.173", 4.40mm Width) Exposed Pad
Supplier Device Package	14-HTSSOP
