Name: ISL78420AVEZ-T7A
Brand: Renesas Electronics America Inc
SKU: ISL78420AVEZ-T7A
Price: 6.22 USD
Availability: InStock

REF: ISL78420AVEZ-T7A Renesas Electronics America Inc

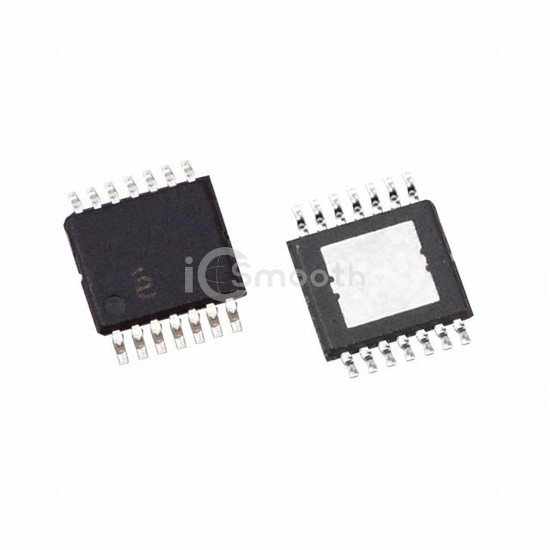

ISL78420AVEZ-T7A

Renesas Electronics America Inc

IC GATE DRVR HALF-BRIDG 14HTSSOP

ISL78420AVEZ-T7A is a PMIC - Gate Drivers manufactured by Renesas Electronics America Inc. IC GATE DRVR HALF-BRIDG 14HTSSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), voltage - supply 8V ~ 14V, package / case 14-TSSOP (0.173", 4.40mm Width) Exposed Pad.

Datasheet Request a Quote

In Stock: 4,777

Tiered Pricing USD

1+ $6.2200 —

10+ $4.7770 -23%

25+ $4.4156 -29%

100+ $4.0182 -35% BEST

Specifications

15 parameters

Product Status	Active
Driven Configuration	Half-Bridge
Channel Type	Synchronous
Number of Drivers	2
Gate Type	N-Channel MOSFET
Voltage - Supply	8V ~ 14V
Logic Voltage - VIL, VIH	1.8V, 4V
Current - Peak Output (Source, Sink)	2A, 2A

Input Type	Non-Inverting
High Side Voltage - Max (Bootstrap)	114 V
Rise / Fall Time (Typ)	10ns, 10ns
Operating Temperature	-40°C ~ 125°C (TA)
Mounting Type	Surface Mount
Package / Case	14-TSSOP (0.173", 4.40mm Width) Exposed Pad
Supplier Device Package	14-HTSSOP
