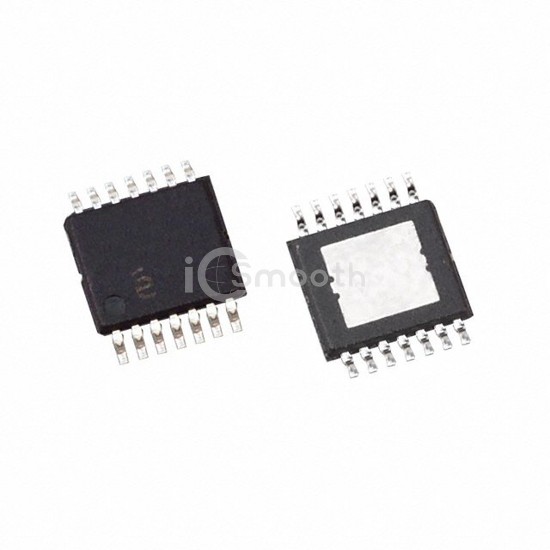

Name: ISL78420AVEZ
Brand: Renesas Electronics America Inc
SKU: ISL78420AVEZ
Price: 5.73 USD
Availability: InStock

REF: ISL78420AVEZ Renesas Electronics America Inc

ISL78420AVEZ

Renesas Electronics America Inc

IC GATE DRVR HALF-BRIDG 14HTSSOP

ISL78420AVEZ is a PMIC - Gate Drivers manufactured by Renesas Electronics America Inc. IC GATE DRVR HALF-BRIDG 14HTSSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), voltage - supply 8V ~ 14V, package / case 14-TSSOP (0.173", 4.40mm Width) Exposed Pad.

Datasheet Request a Quote

In Stock: 296

Tiered Pricing USD

1+ $5.7300 —

10+ $4.3830 -24%

25+ $4.0476 -29%

100+ $3.6784 -36%

250+ $3.5025 -39%

960+ $3.3138 -42%

1,920+ $3.2412 -43%

2,880+ $3.2048 -44% BEST

Specifications

15 parameters

Product Status	Active
Driven Configuration	Half-Bridge
Channel Type	Synchronous
Number of Drivers	2
Gate Type	N-Channel MOSFET
Voltage - Supply	8V ~ 14V
Logic Voltage - VIL, VIH	1.8V, 4V
Current - Peak Output (Source, Sink)	2A, 2A

Input Type	Non-Inverting
High Side Voltage - Max (Bootstrap)	114 V
Rise / Fall Time (Typ)	10ns, 10ns
Operating Temperature	-40°C ~ 125°C (TA)
Mounting Type	Surface Mount
Package / Case	14-TSSOP (0.173", 4.40mm Width) Exposed Pad
Supplier Device Package	14-HTSSOP
